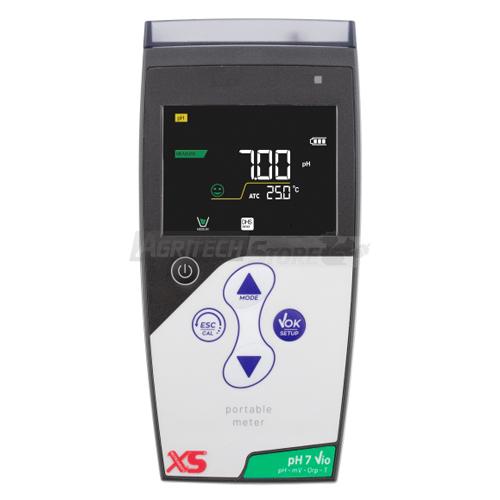

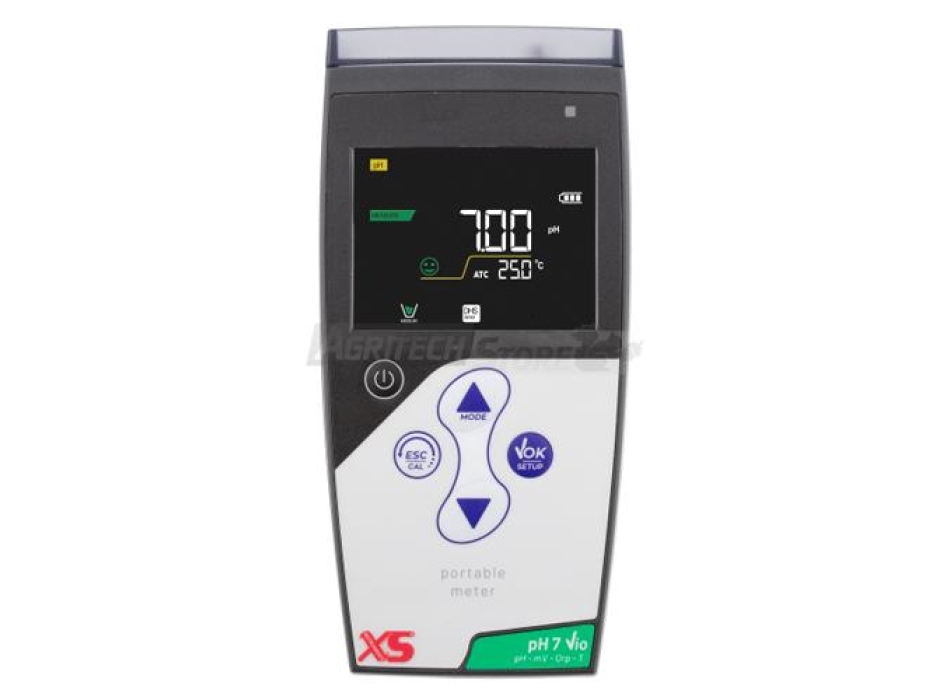

Portable pH meter pH7 + DHS Kit - Non-DHS electrode
pH7 + DHS, proposed by Agritechstore, is an elegant and ergonomic container that contains the best of electronics. A large display with all the information on the measurement, on the buffers used for the calibration, on the stability of the measurement and on the state of the electrode (not DHS).
All the functional parameters of the sensors connected during measurements or during calibration are constantly kept under control and in the event of errors reported to the operator. Only 4 keys allow you to manage all the functions in a simple and intuitive way.
Features:
- Electrode 201 T
- Management of analog pH sensors and digital ones with DHS technology
- Large display for simultaneous display of pH / mV and temperature, of the buffers used for calibration and of measurement stability
- Selectable resolution: 0.1 / 0.01 pH
- Automatic calibration from 1 to 3 points at choice between two buffer families (USA and NIST)
- Manual calibration on 2 points with user defined buffers
- Setting the stability parameters (Low-Med-High) for a more accurate or faster measurement
- IP57 Waterproof
- Auto Off
- Protective rubber shell with bench support
- Self-diagnosis messages
- 5-year warranty on the electronic part
Content:
- pH7 + DHS complete with 201 T electrode with built-in temperature probe and BNC plug
- colored pads
- transport suitcase and accessories
| Technical specifications |
| pH measuring range |
0.00 ... 14.00 pH |
| Resolution |
0.1 / 0.01 pH |
| Calibration points |
1, 2 or 3 |
| Recognized pads |
USA: 1.68 - 4.01 - 7.00 - 10.01 pH
NIST: 1.68 - 4.01 - 6.86 - 9.18 pH
2 user-defined values |
| Indication of calibration data |
Si (slope) |
| Indication of stability criteria measure |
Yes |
| Indication of buffers used for calibration |
Yes |
| mV measuring range |
± 1,000 mV |
| Resolution |
1 mV |
| Measuring range temperature |
0… .100.0 ° C |
| Resolution / Accuracy |
0.1 ° C / ± 0.5 ° C |
| Auto Off |
after 20 minutes |
| Temperature compensation |
Automatic / manual 0… 100 ° C |
| Battery life |
> 500 hours |
| System: GLP |
- |
| Inputs |
BNC and RCA / CINCH (CAT) |
| IP protection degree |
Waterproof IP 57 |
| Display |
CLD (Liquid Crystal Display) |
| Supply |
3 x 1.5V AA batteries |
| Instrument size / weight |
86 × 196 × 33 mm / 295 g |
| Suitcase size / weight |
385 x 300 x 115 mm / 1720 g |
| Warranty on the electronic part |
5 years |
