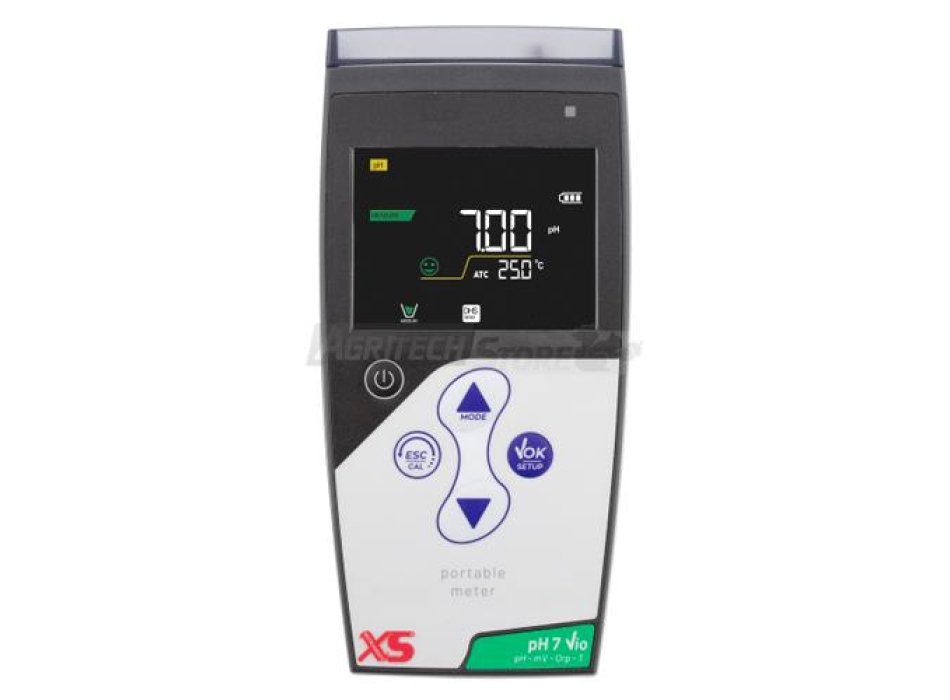

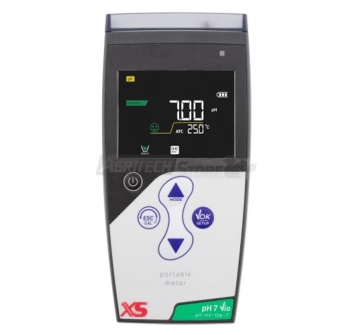

Portable pH Meter pH7+ FOOD DHS Kit - Non-DHS Electrode
The pH7+ FOOD DHS, offered by Agritechstore, is an elegant and ergonomic container that houses the best in electronics. A large display provides all the information about the measurement, the buffers used for calibration, the stability of the measurement, and the status of the electrode (not DHS).
All functional parameters of the connected sensors are constantly monitored during measurements or calibration, and errors are reported to the operator. Just four buttons allow for simple and intuitive management of all functions.
Characteristics:
- XS 2 Pore T Electrode
- Management of analog pH sensors and digital ones with DHS technology
- Large display for simultaneous display of pH/mV and temperature, buffers used for calibration and measurement stability
- Selectable resolution: 0.1/0.01 pH
- Automatic calibration from 1 to 3 points with a choice of two buffer families (USA and NIST)
- Manual 2-point calibration with user-defined buffers
- Setting stability parameters (Low-Med-High) for a more accurate or faster measurement
- IP57 Waterproof
- Auto power off
- Protective rubber case with bench stand
- Self-diagnosis messages
- 5-year warranty on electronic parts
Content:
- pH7+ DHS FOOD complete with 2 Pore T electrode with built-in temperature probe and BNC plug
- colored swabs
- transport case and accessories
| Technical specifications |
| pH measuring range |
0.00…14.00 pH |
| Resolution |
0.1 / 0.01 pH |
| Calibration points |
1, 2 or 3 |
| Recognized swabs |
USA: 1.68 - 4.01 - 7.00 - 10.01 pH
NIST: 1.68 - 4.01 - 6.86 - 9.18 pH
2 user-defined values |
| Indication of calibration data |
Yes (slope) |
| Indication of measurement stability criteria |
Yes |
| Indication of swabs used for calibration |
Yes |
| mV measuring range |
± 1,000 mV |
| Resolution |
1 mV |
| Temperature measuring range |
0….100.0 °C |
| Resolution / Accuracy |
0.1 °C / ± 0.5 °C |
| Auto power off |
after 20 minutes |
| Temperature compensation |
Automatic / manual 0…100 °C |
| Battery life |
> 500 hours |
| System: GLP |
-- |
| Entrances |
BNC and RCA/CINCH (CAT) |
| IP protection rating |
Waterproof IP 57 |
| Display |
CLD (Liquid Crystal Display) |
| Diet |
3 x 1.5V AA batteries |
| Instrument dimensions / weight |
86 × 196 × 33 mm / 295 g |
| Suitcase dimensions / weight |
385 x 300 x 115 mm / 1720 g |
| Warranty on the electronic part |
5 years |
