Made in Italy

MIA Universal Radio Remote Control

(0)
€ 1.180,00

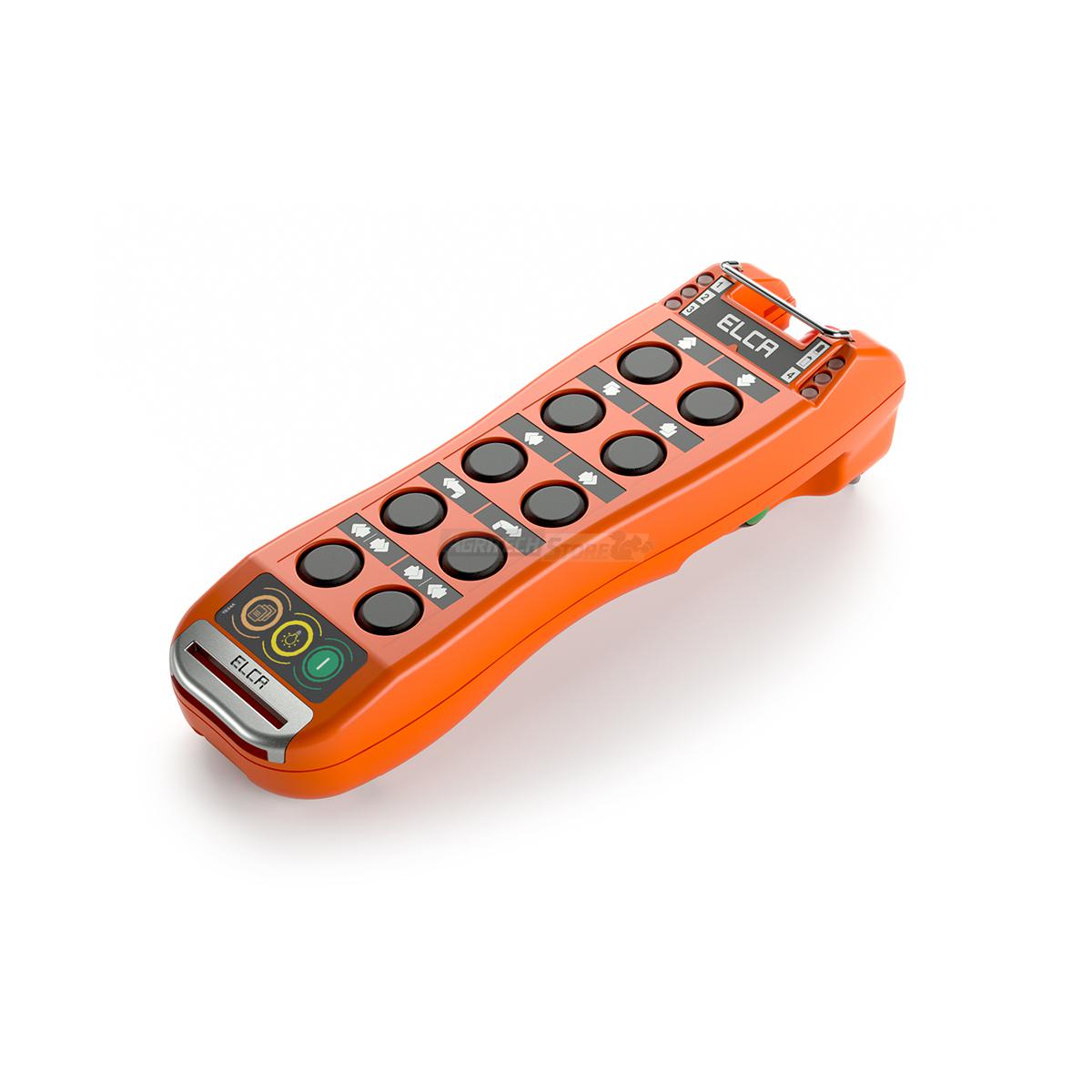

MIA Universal Radio Remote Control

MIA is the new keypad proposed by Agritechstore to control via radio, with a high degree of safety, industrial lifting and handling machines and systems.

Main features:
  • In the maximum configuration, it includes a Start button, mushroom-shaped Stop button (Pld), 23 on/off controls (10 double-shot buttons and 2 single-shot buttons, 1-0-1 lever selector) and a potentiometer for proportional adjustment;
  • Compact, lightweight, ergonomic. Low-consumption electronics and interchangeable lithium battery allow up to 20 hours of continuous use (light and sound warning of low residual capacity);
  • Innovative battery with integrated electronics; direct connection to the “ELCA-CLIP” power supply and 4 hours for a full charge (in 15 minutes you have 3 hours of autonomy);
  • The optional cable with USB terminal is compatible with the use of portable chargers;
  • The MIA keypad is resistant to impacts and harsh conditions of use (ABS hull, compensation valve, IP65);
  • External case for extra protection (optional);
  • The bidirectional system provides up to 4 input signals to the receiver connected to the controlled machine and the status display on the transmitter via LED;
  • Also available in a version with display and 8 double-click main control buttons;
  • Electronic activation key with customizable code;
  • Programmable auto-off (2-5-10');
  • Quick and easy transmitter replacement without any settings. In the battery compartment, the unique code and set functions are contained in a removable hardware key, protected by a watertight door;
  • When switched on, the transmitter automatically selects the first free frequency available to ensure the best signal coverage in every working situation;
  • The “Function” button allows programmable functions (e.g. holding of any output, combined functions: “Master-Slave”, “Take-Release”, “Tandem”);
  • The excellence of MIA design has been rewarded with the prestigious IF Design Award;
Each MIA radio control includes:
  • transmitting unit;
  • receiving unit;
  • rechargeable battery;
  • ELCA-CLIP power supply;
  • shoulder strap;
  • user manual.

the best universal remote controls on Agritechstore

TECHNICAL DATA:
Operating range UHF
ISM band working frequency 433.050 ÷ 434.790 MHz
Working temperature -25 ÷ +55 °C
Storage and transport temperature -25 ÷ +55 °C
Range of action 150 m
* Safety functions (according to EN 13849-1):
- Stop Protection PL d
- Protection against unwanted movements from the rest position (UMFS) PL c

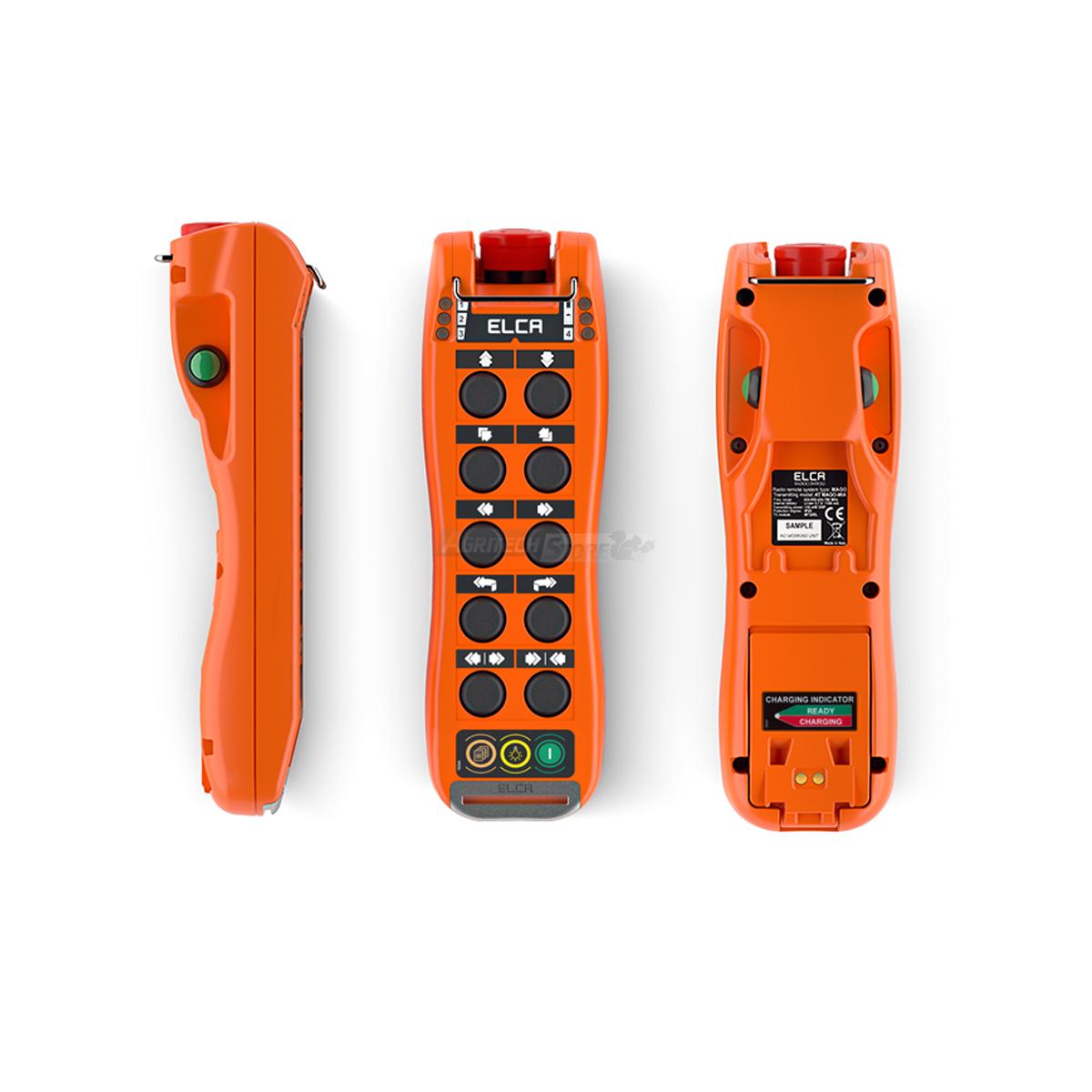

E1 Mia transmitter technical data
Antenna incorporated
Diet 3.7V lithium polymer battery pack
Absorption < 45mA
Power absorbed < 0.15W
RF emission power < 10mW ERP
1st low battery warning (red LED lights up) up to 1 hour of battery life
2nd low battery warning (fast flashing red LED) up to 5 minutes of battery life
3rd low battery warning (horn sound) 100 seconds autonomy
Autonomy with charged battery at 20°C about 20 hours
Degree of protection IP65
Dimensions 72x35x65mm
Weight 390 g

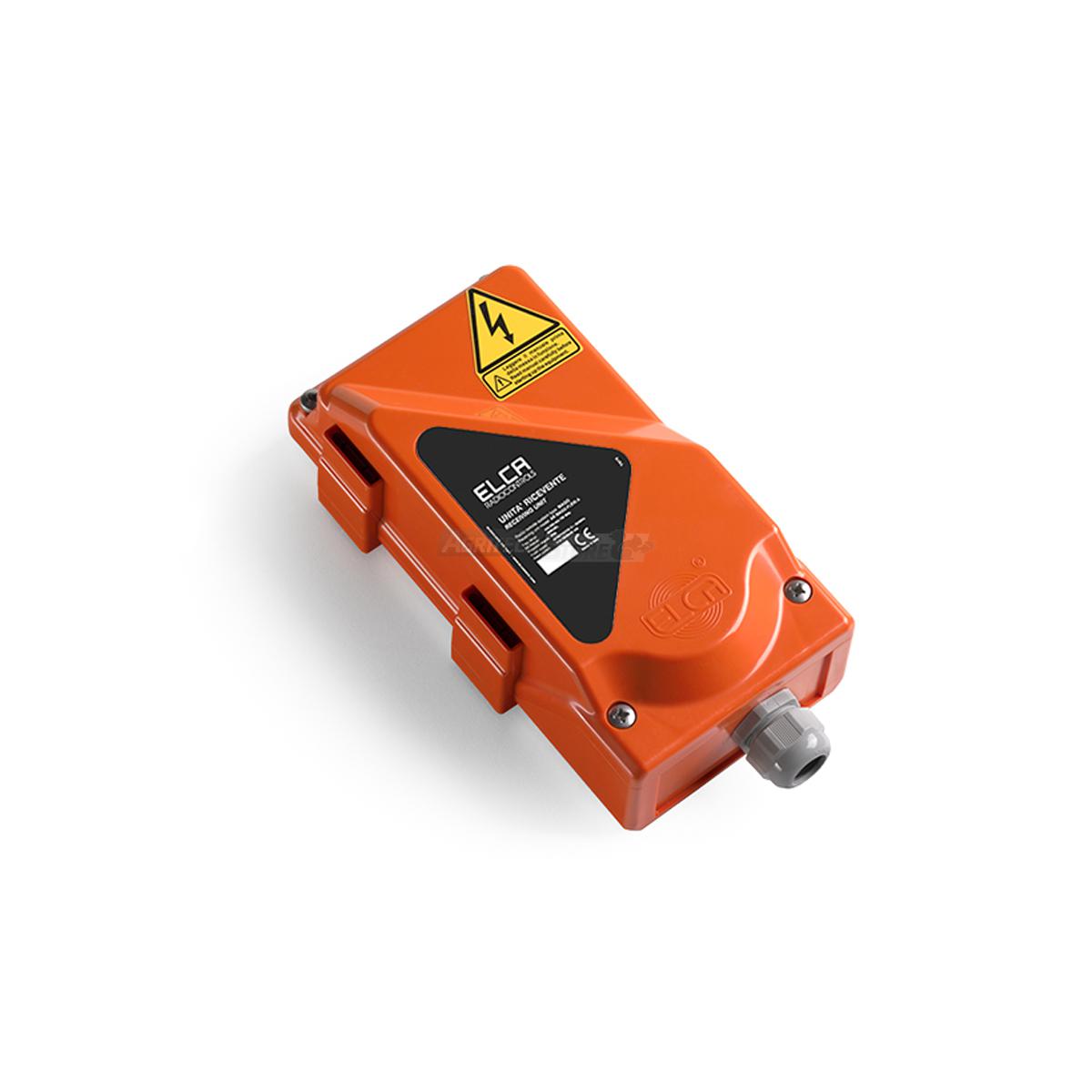

Technical data receiver E1 Flexi A - E1 Flexi SW
E1 Flexi A E1 Flexi SW
Antenna incorporated
Diet 48/55/110/230 Vac; 50/60 Hz 12-24Vdc
Power absorbed < 15 VA < 15W
Maximum contact capacity of the control circuits 10 A
Maximum contact capacity of the Stop circuit 4 A
Maximum contact capacity of the safety circuit 4 A
Maximum voltage applicable to contacts 220 Vac; 50/60 Hz 30Vdc
Degree of protection IP65
Dimensions 135x255x85 mm
Weight 1600 g
