Radio Control for Lifting E1 MIA BASE +2 batteries + cover Push-button radio control for lifting, ideal for cranes, overhead cranes, etc.

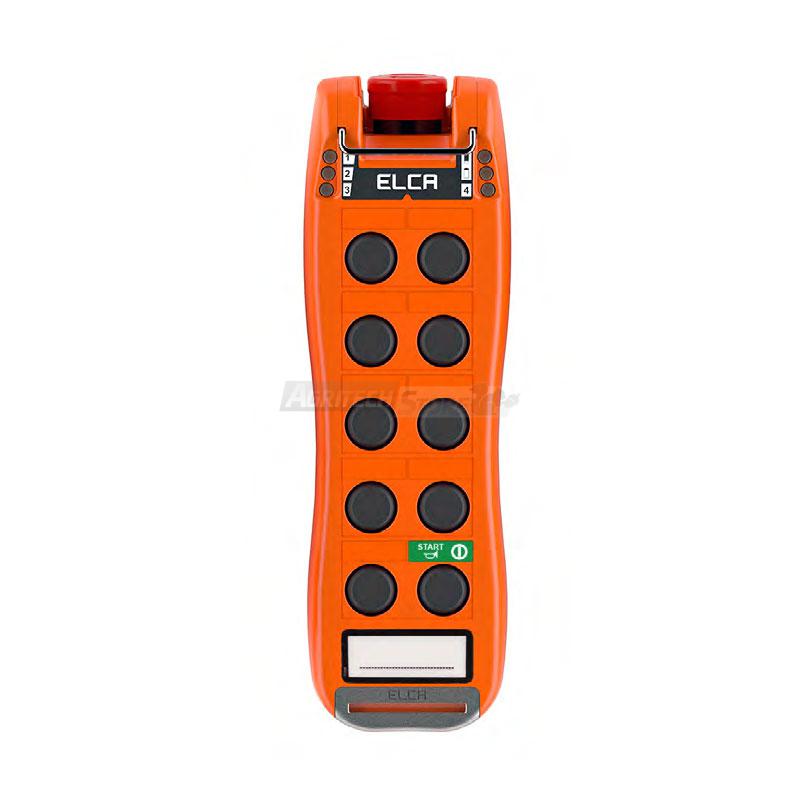

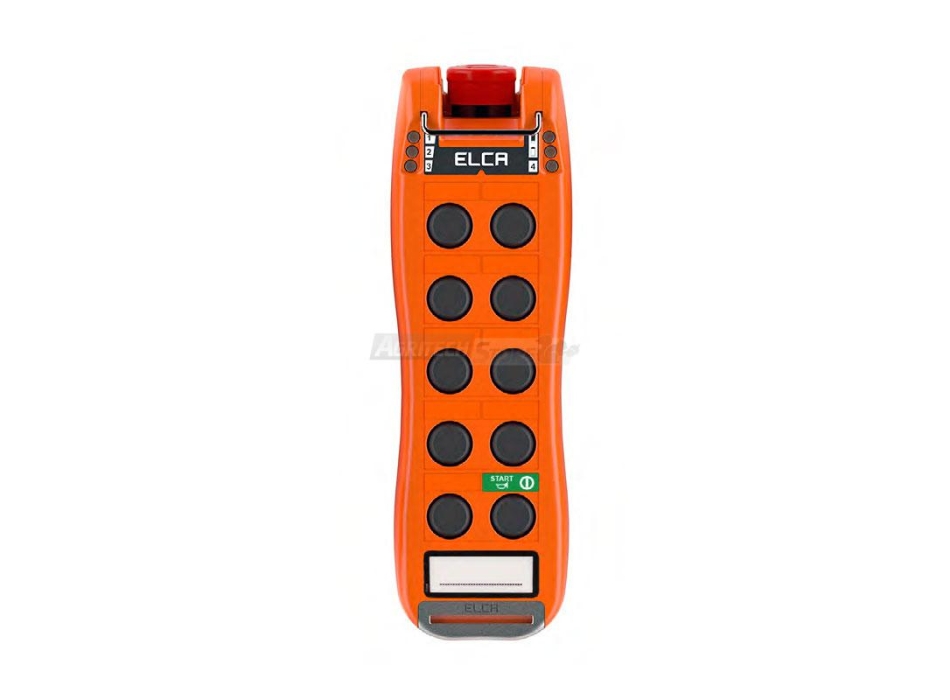

MIA is a keypad for radio-controlled, with a high degree of safety, industrial lifting and handling machines and systems.

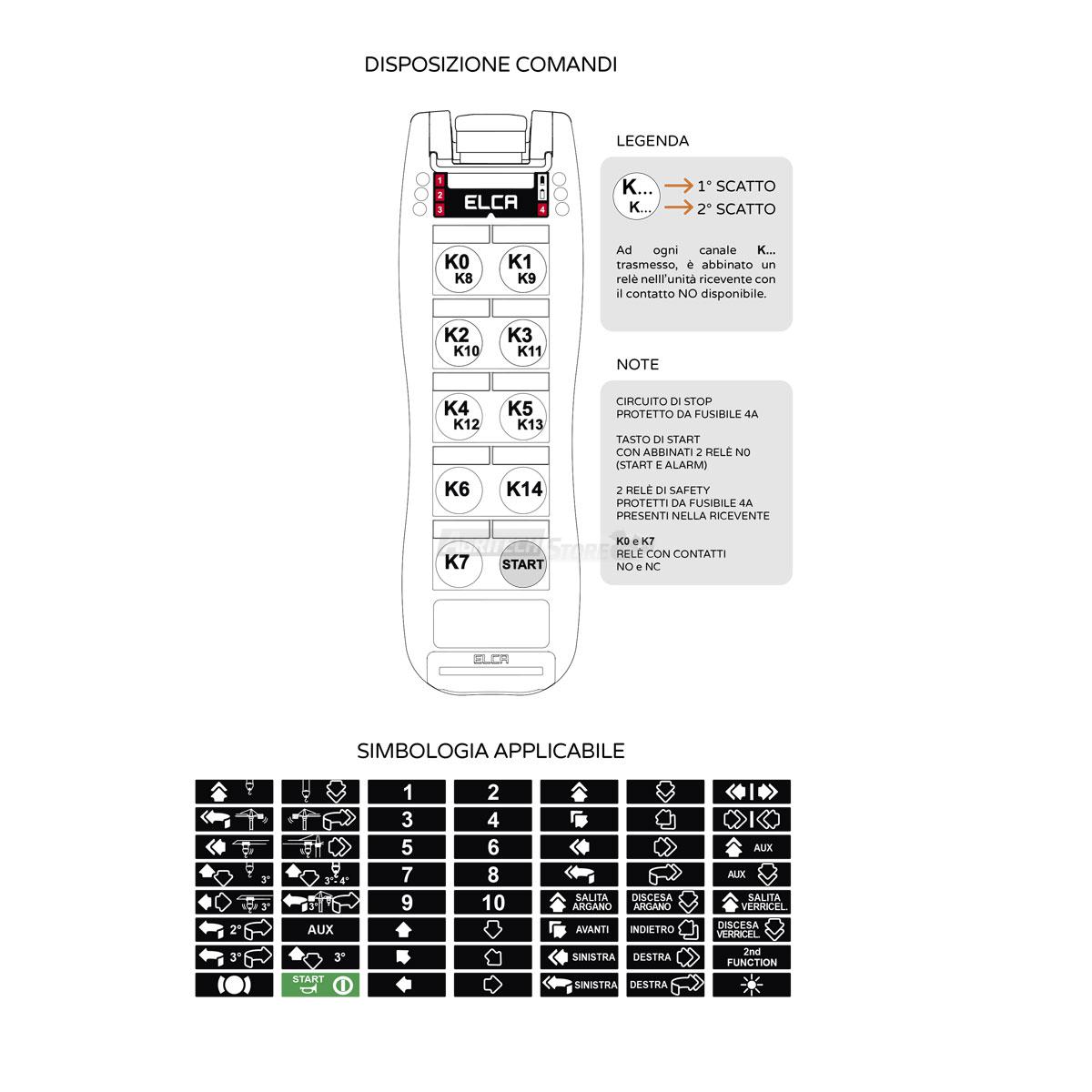

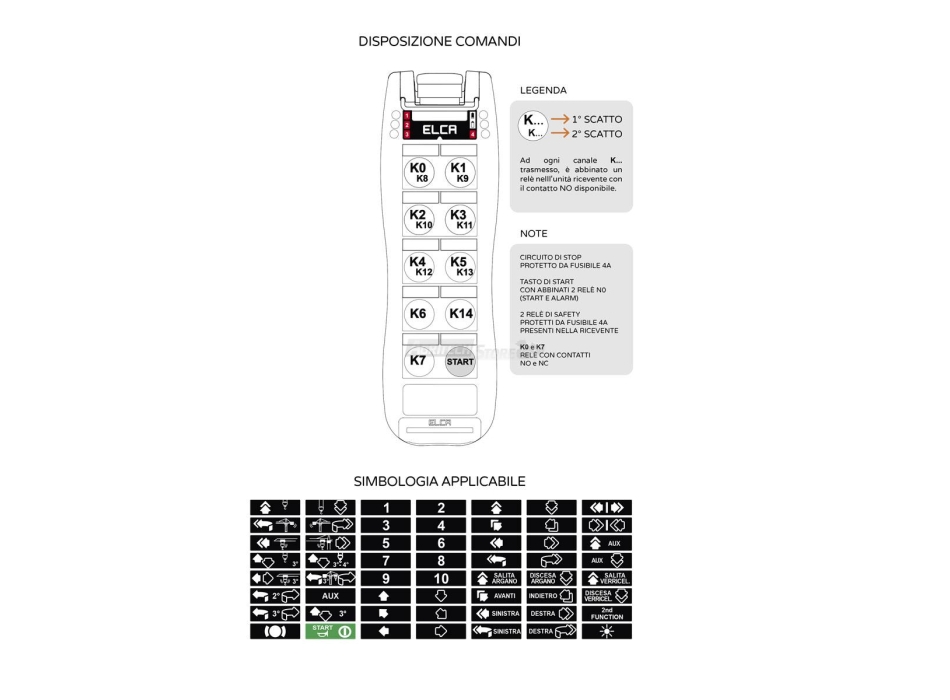

In the maximum configuration, it includes a Start button, mushroom-shaped Stop button (Pld), 23 on/off controls (10 double-shot buttons and 2 single-shot buttons, 1-0-1 lever selector) and a potentiometer for proportional adjustment.
Compact, lightweight, ergonomic.
Low-consumption electronics and interchangeable lithium battery allow up to 20 hours of continuous use (light and acoustic warning of low residual capacity).
Innovative battery with integrated electronics; direct connection to the “ELCA-CLIP” power supply and 4 hours for a full charge (in 15 minutes you have 3 hours of autonomy).
The optional cable with USB terminal is compatible with the use of portable chargers.
The MIA keypad is resistant to impacts and harsh conditions of use, with an ABS hull, compensation valve, IP65, external case for extra protection (optional).
The bidirectional system provides up to 4 input signals to the receiver connected to the controlled machine and the status display on the transmitter via LED.
Also available in a version with display and 8 double-click main control buttons.
Electronic activation key with customizable code.
Programmable auto-off (2-5-10').
Quick and easy transmitter replacement without any settings.
In the battery compartment, the unique code and set functions are contained in a removable hardware key, protected by a watertight door.
When switched on, the transmitter automatically selects the first available free frequency to ensure the best signal coverage in every working situation.
The “Function” button allows programmable functions (e.g. holding of any output, combined functions: “Master-Slave”, “Take-Release”, “Tandem”).
The excellence of MIA design has been rewarded with the prestigious IF Design Award.

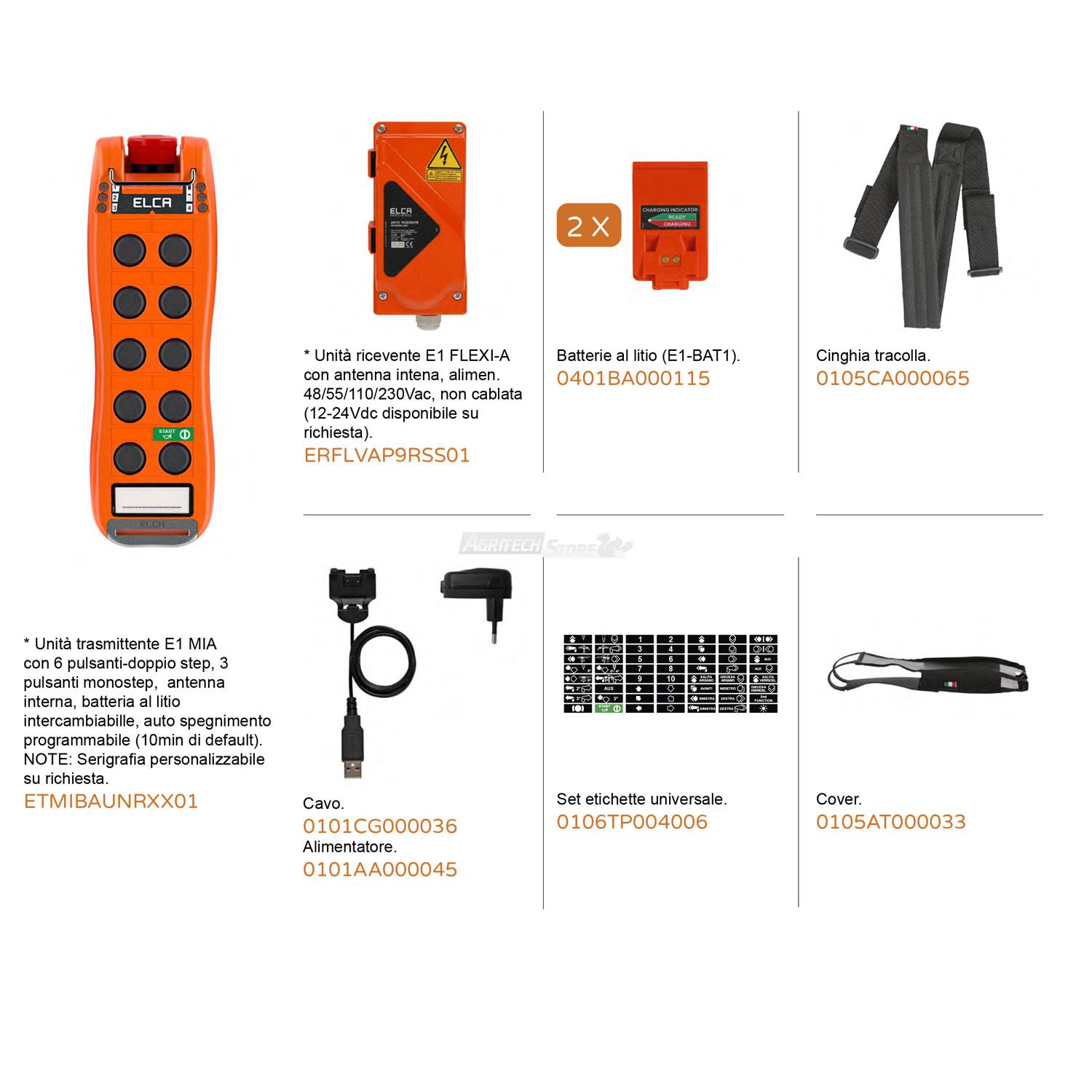

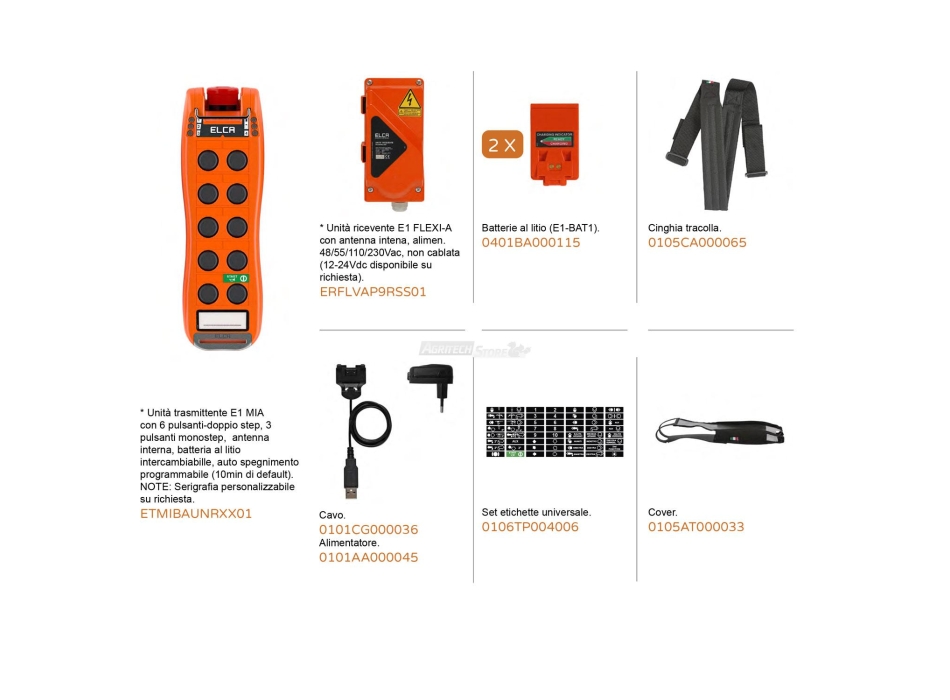

The MIA remote control/keypad is composed of:- E1 MIA transmitting unit with 6 double-step buttons, 3 single-step buttons, internal antenna, interchangeable lithium battery, programmable auto-off (10min default).
- E1 FLEXI-A receiving unit with internal antenna, power supply 48/55/110/230Vac, not wired (12-24Vdc available on request).
- No. 2 Lithium batteries (E1-BAT1)
- Shoulder strap
- Cable
- Power supply
- Universal label set
- Cover
- Each system includes multilingual instruction manuals, CE certifications
When reordering the transmitter/receiver, please indicate the serial number of the radio control!
