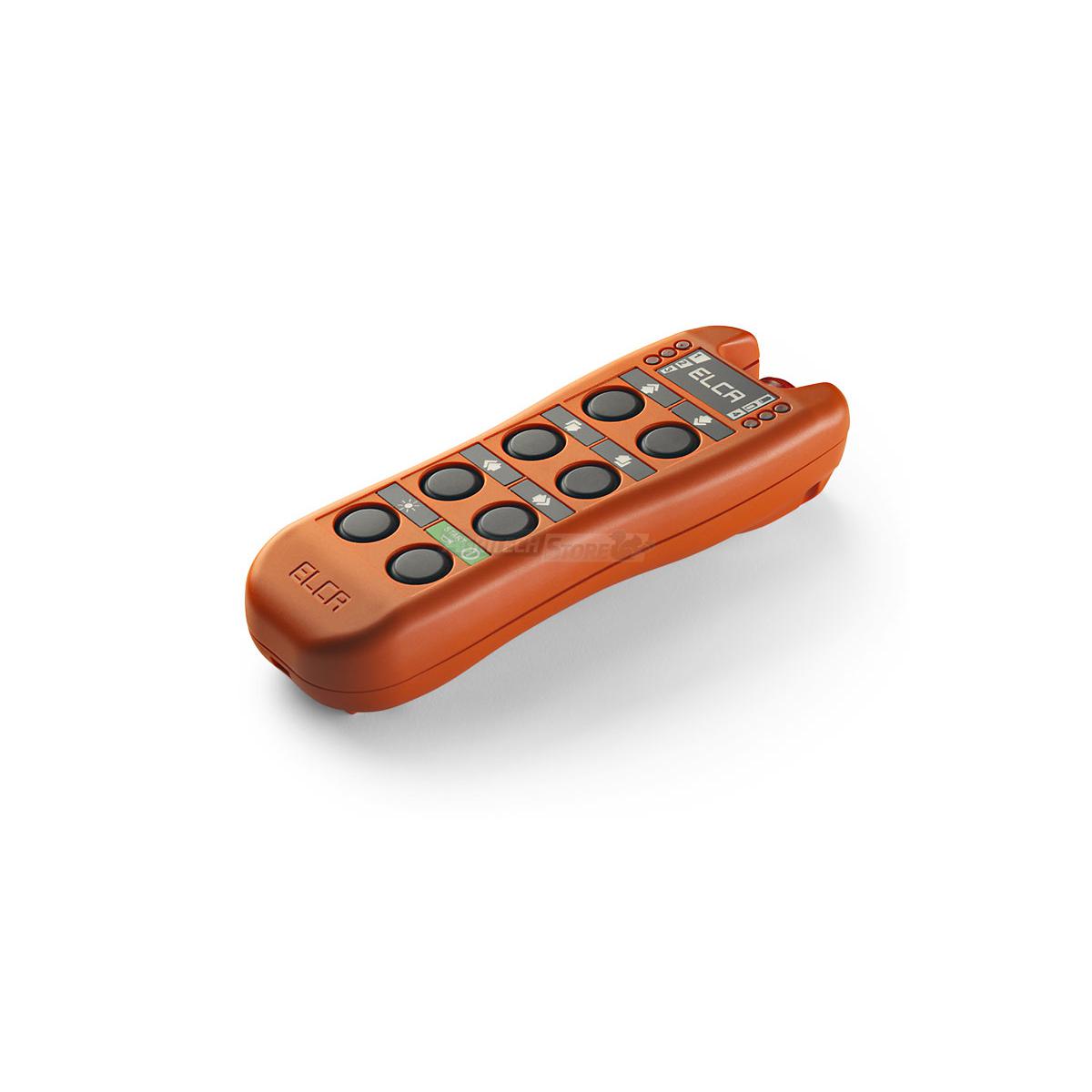

Mago EVO Radio Control with Separate Seconds Universal Compact and Lightweight

MAGO EVO is the keypad proposed by Agritechstore, compact, light and ergonomic, created to control industrial lifting and handling machines and systems; it adapts to the most diverse application needs.
MAGO EVO is resistant to impacts and the most demanding conditions of use (ABS hull, IP65, compensation valve) and can receive and display on LEDs up to 4 signals coming from the controlled machine (transceiver system).

Main features:
  • It houses 6 double-click buttons for the controls plus one auxiliary one for programmable functions, in addition to the mushroom-shaped Start and Stop buttons;
  • The electronics are low consumption with a lithium battery (up to 40 hours of continuous use); it recharges completely in 4 hours and with only 15 minutes you get 3 hours of autonomy;
  • In the presence of radio interference, the keypad stops and, at the next Start, automatically chooses a new available frequency, thus ensuring optimal work;
  • The “Function” button can be an impulse/retained command (with/without memory) or a selection command (1, 2, 1+2) with indication of the active selection;
  • EVO receives any signals from the controlled machine, bi-directional system, and indicates them on 4 available LEDs;
  • The hull is made of ABS with IP65 protection rating;
  • The start is protected by an electronic code key, the automatic switch-off is programmable (2, 5, 10 minutes of inactivity);
  • Replacing the transmitter does not result in the loss of the stored settings (pairing directly from the keypad buttons);

the best universal remote controls on Agritechstore

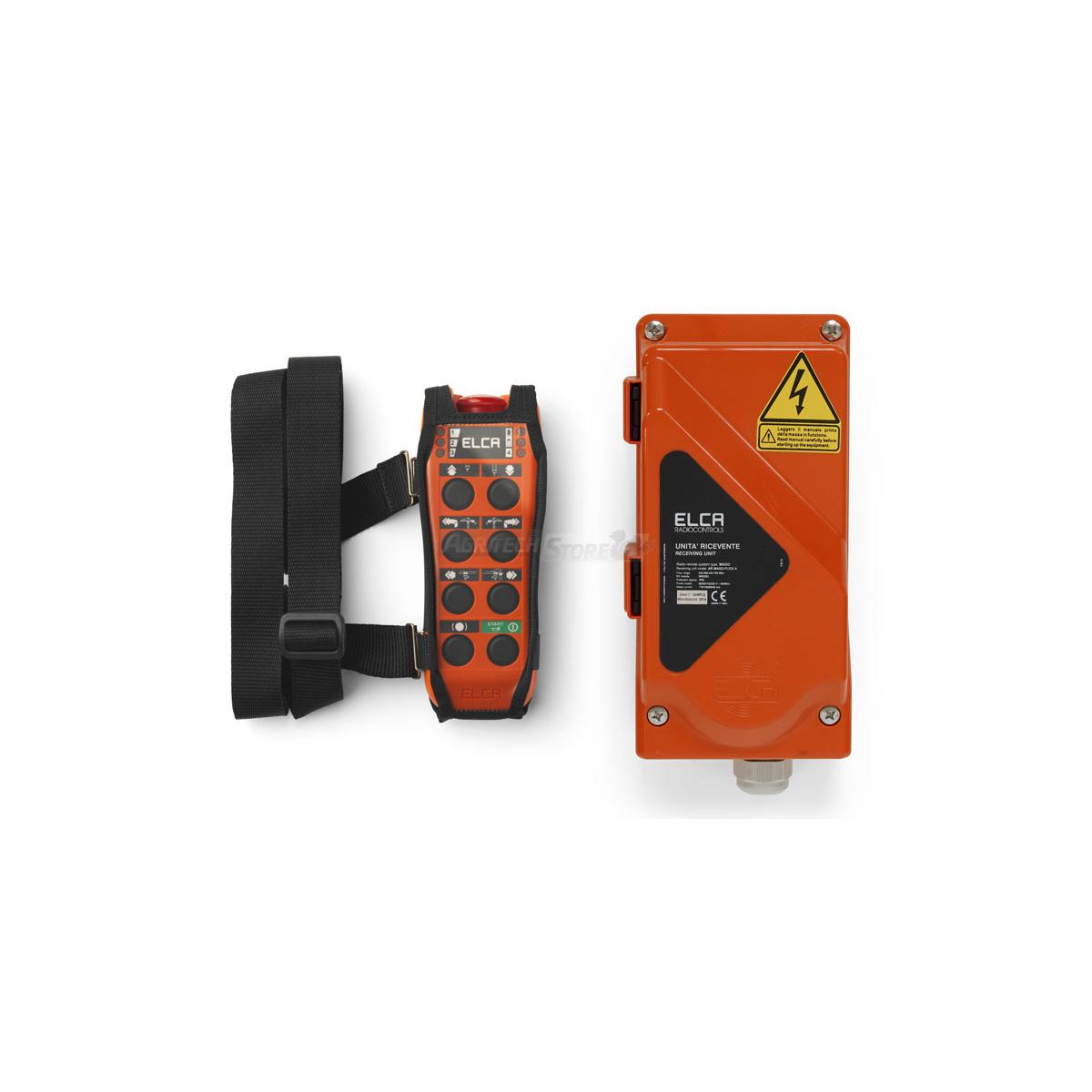

The standard supply includes:
  • EVO transmitter;
  • MAGO FLEXI receiver;
  • ELCA-CLIP power supply;
  • transparent protective case;
  • shoulder strap;
  • cuff strap;
  • user manual.
TECHNICAL DATA:
Operating range UHF
ISM band working frequency 433.050 ÷ 434.790 MHz
Working temperature -25 ÷ +55 °C
Storage and transport temperature -25 ÷ +55 °C
Range of action 100 m
* Safety functions (according to EN 13849-1):
- Stop Protection PL d
- Protection against unwanted movements from the rest position (UMFS) PL c
Technical data of the MAGO EVO transmitter
Antenna incorporated
Diet 3.7V lithium polymer battery pack
Absorption < 30mA
Power absorbed < 0.15W
RF emission power < 10mW ERP
1st low battery warning (red LED lights up) up to 1 hour of battery life
2nd low battery warning (fast flashing red LED) up to 5 minutes of battery life
3rd low battery warning (horn sound) 100 seconds autonomy
Autonomy with charged battery at 20°C about 20 hours
Degree of protection IP65
Dimensions 72x193x44mm
Weight 250 g
Technical data MAGO FLEXI A receiver
Antenna incorporated
Diet 48/55/110/230 Vac; 50/60 Hz
Power absorbed < 9 VA
Maximum contact capacity of the control circuits 10 A
Maximum contact capacity of the Stop circuit 4 A
Maximum contact capacity of the safety circuit 4 A
Maximum voltage applicable to contacts 220 Vac; 50/60 Hz
Degree of protection IP65
Dimensions 135x255x85 mm
Weight 1200 g
