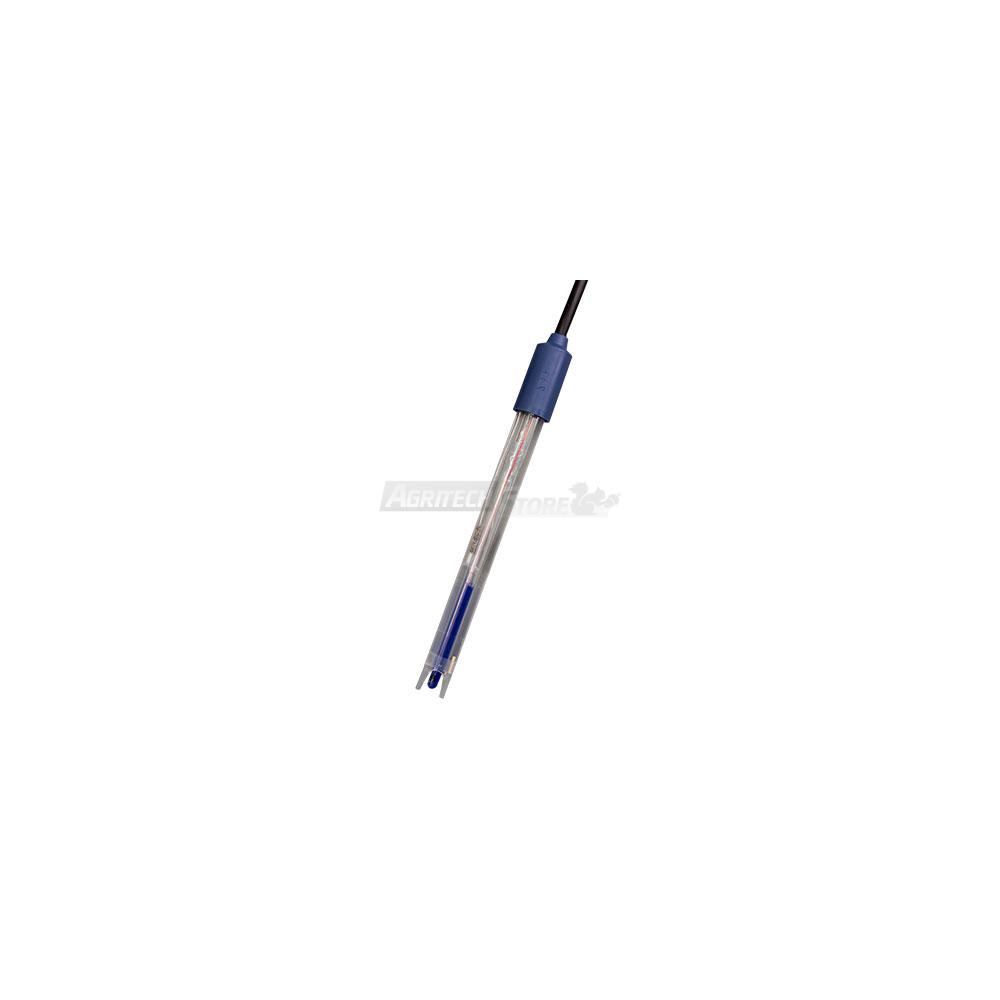

201 TX series 7*70 and pH50 + ATC, combined pH electrode with built-in temperature sensor
Combined pH electrode for pH meter pH 7 and 70, pH 0...14, temperature 0...60 °C with built-in temperature sensor.
Main features:
- DHS, Intelligent Sensor Management;
- general purpose plastic body;
- glass body (LxØ) mm 120x12;

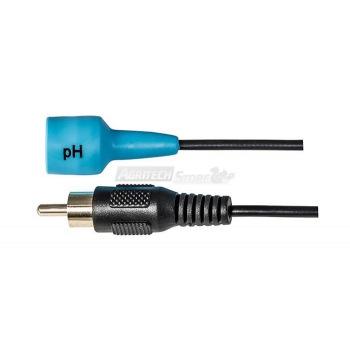

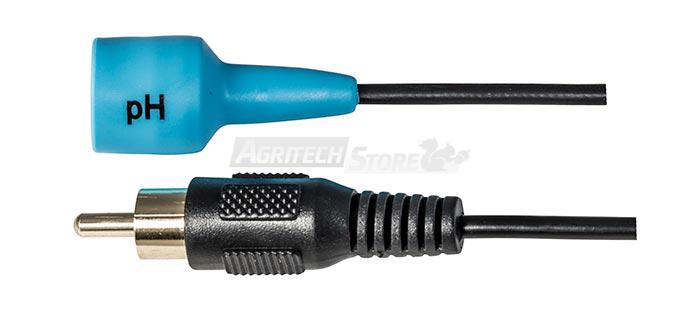

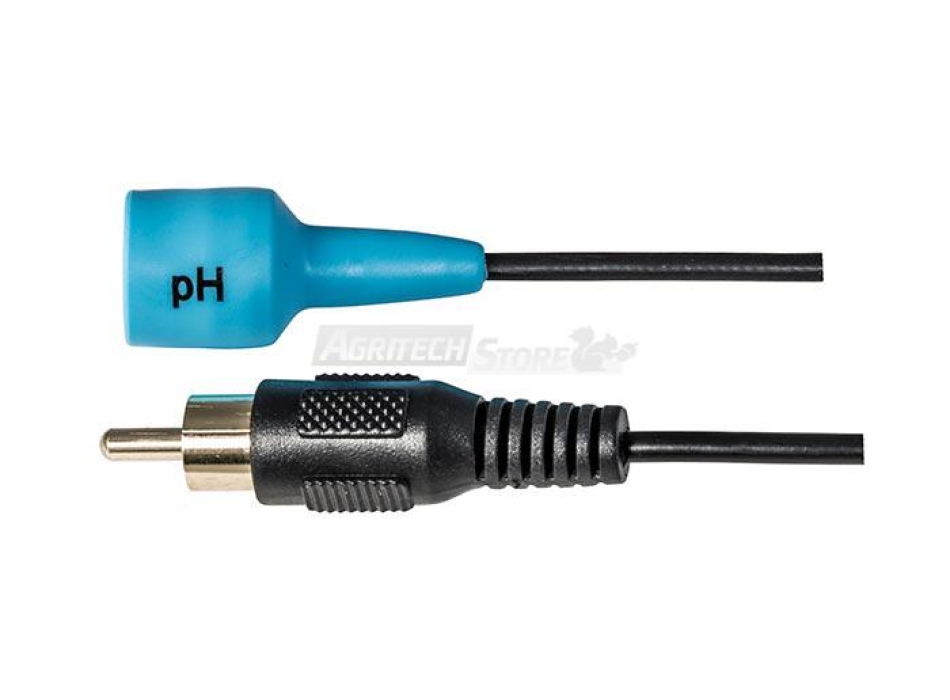

- 1 m fixed cable with BNC+RCA Cinch plug and temperature sensor connector;
- gel filling with porous septum;
- maintenance-free.
| Technical specifications |
| Code |
50002002 |
| Connection |
fixed cable / BNC |
| pH Range |
0...14 |
| Temperature range |
0...60C° |
| Temperature sensor |
Yes/RCA Cinch plug |
| Body material |
Plastic |
| Diaphragm |
Ceramic |
| Reference system |
Ag/AgCI |
| Electrolyte |
Gel |
| Body length |
120 mm |
| Body diameter |
12 mm |
| Notes/applications |
Temperature probe
NTC 30 KΩ |
