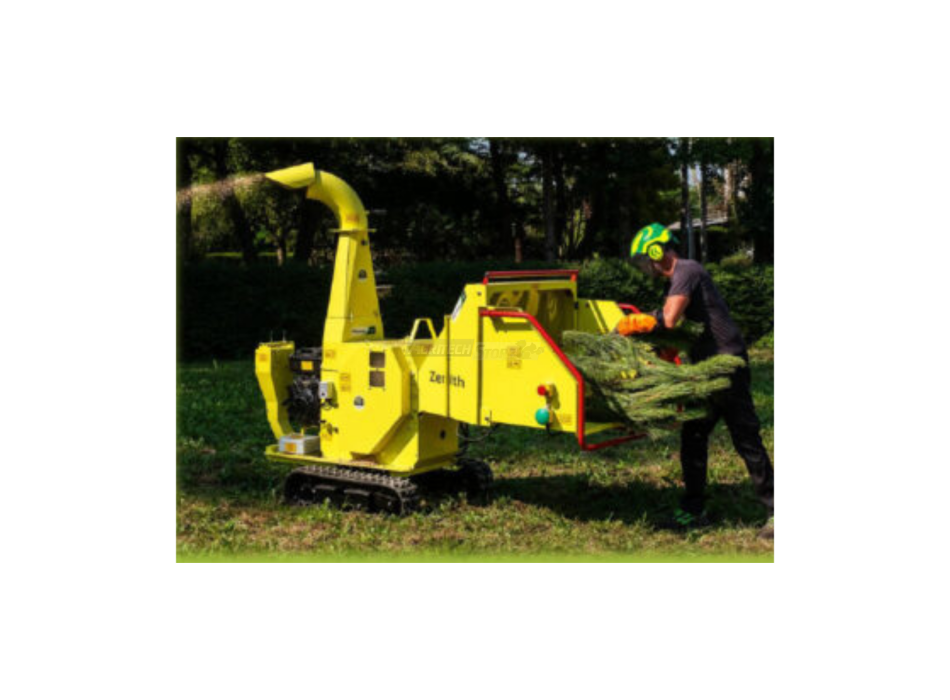

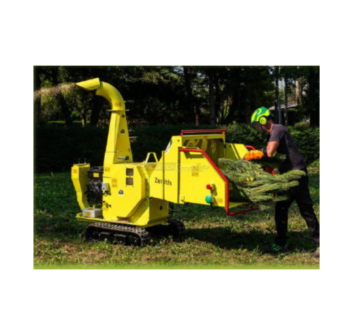

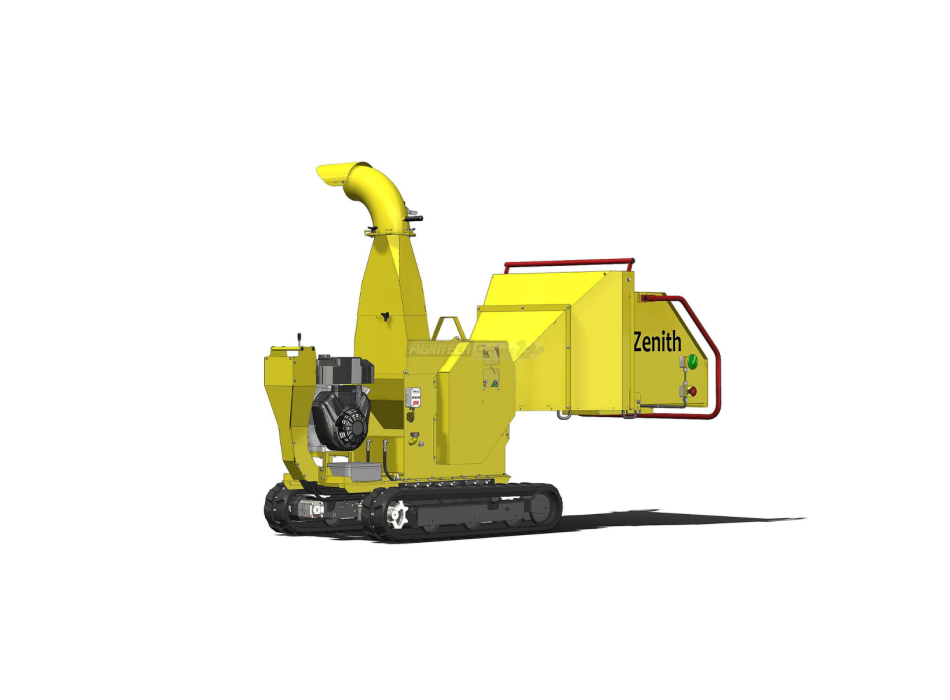

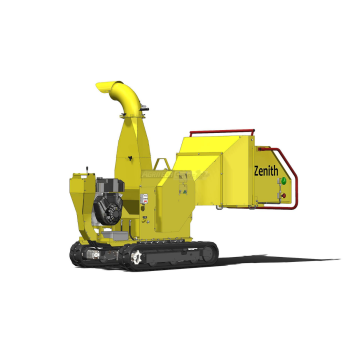

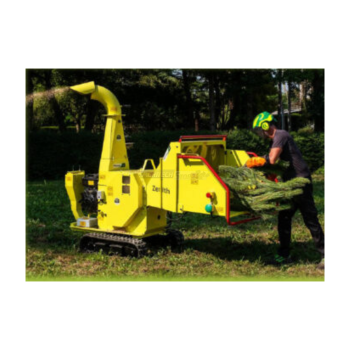

Zenith tracked chipper shredder – Honda iGX800 engine : powerful and reliable, shreds branches up to 15 cm in diameter. Ideal for gardens and farms, with tracks for difficult terrain and an efficient cutting system. Perfect for composting, mulching, and branch disposal.
If you own a garden or manage green areas, a wood chipper is an indispensable tool. This machine shreds branches, leaves, and other plant debris into
small pieces, making composting , collection and disposal of green waste easy.
Using a wood chipper offers numerous advantages:
The chippers are available in different versions, suitable for every need:
A tracked Zenith wood chipper simplifies green waste management, reduces the space required for disposal, and allows you to produce fertile compost, while also helping to protect the environment.
Invest in a wood chipper and discover all the benefits it can offer your garden or green space!
| TECHNICAL CHARACTERISTICS MOD. ZX160-H-AS-C | |
| Max cutting ø | 150 mm |
| Motor | Honda iGX800 - 25 hp |
| Start-up | electric |
| Cooling | air |
| Petrol tank | integrated: 8.5 l |
| Hydraulic oil tank | with filter and pressure gauge: 13 l |
| Anti-stress device | standard, with integrated hour meter |
| Engine-cutting mass transmission | double toothed belt with centrifugal clutch |
| Cutting system | drum composed of 4 blades and fixed counter-knife |
| Type of blades | heart-hardened steel |
| Cutting device width | 415 mm |
| Feed roller | Two counter-rotating toothed rollers driven by hydraulic motors. Control via a side safety bar on the hopper for stopping and reversing, via a top safety bar on the hopper for stopping, and via a restart button on the sides of the hopper for moving forward. |
| Loading hopper size at cutting point | 415 x 170h mm |
| Hopper size (operator area) | 1080 x 750h mm |
| Directional exhaust | Tilt-up exhaust with rotatable elbow. 200 mm (minimum) on exhaust elbow. Adjustable deflector with lever. |
| Movement system | on tracks, with hydraulic motors, 2 levers on the rudder control the 2 tracks individually. |
| Track width | 900 mm |
| Track length | 1050 mm |
| Weight | 680 kg |
| Measurements in working position | 3065 x 1255 x 2150h mm |
| Measurements in temporary displacement position | 2400 x 1090 x 1960h mm |
| Measurements in transport position | 2455 x 1255 x 1610h mm |
