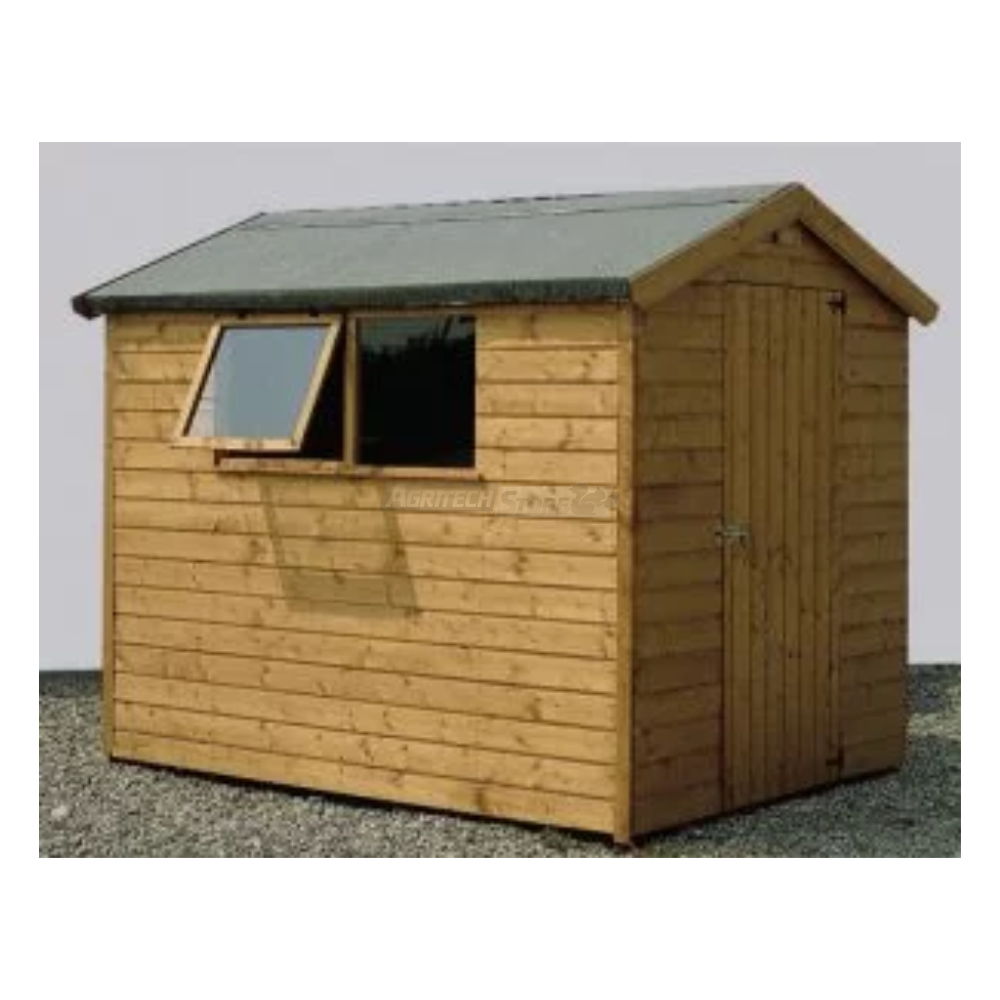

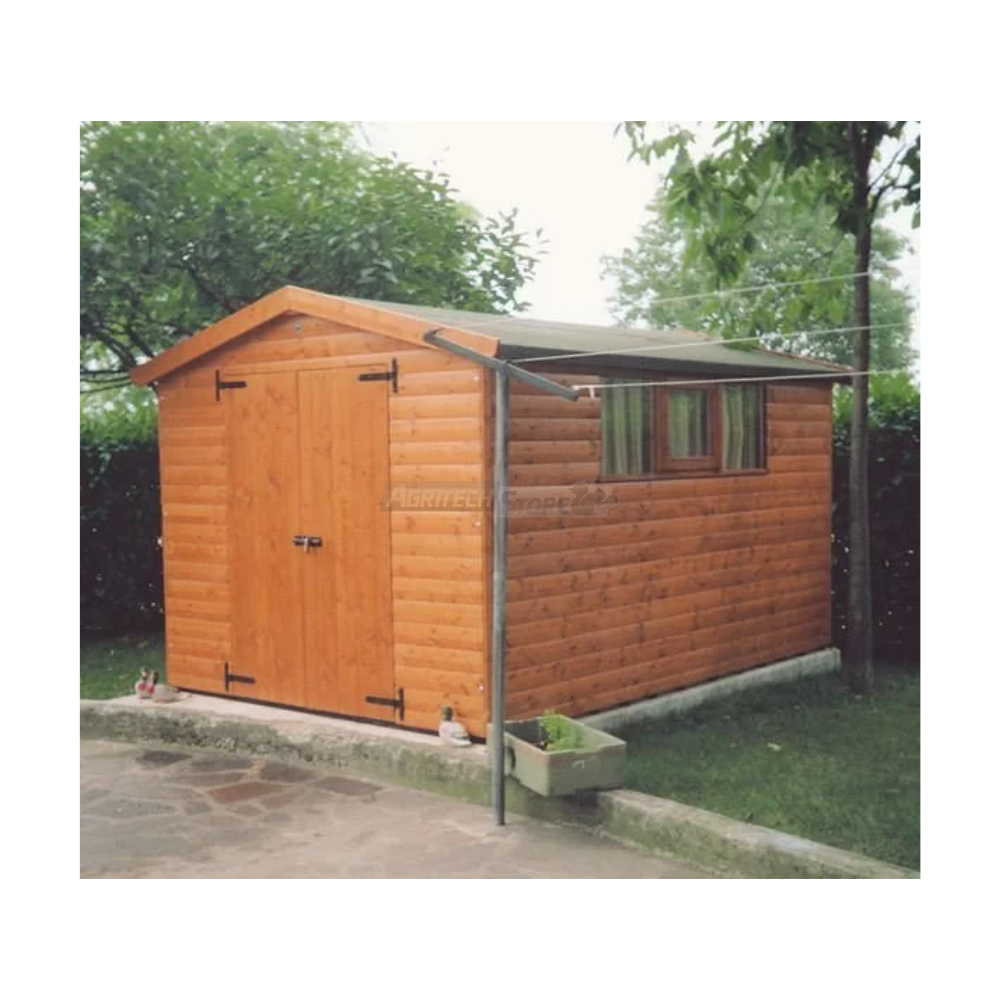

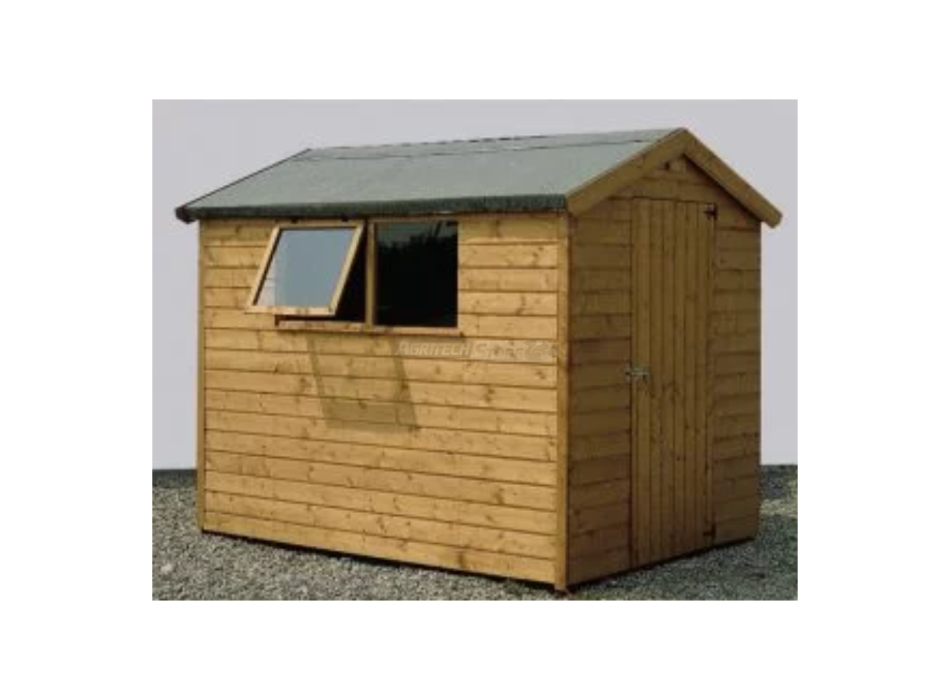

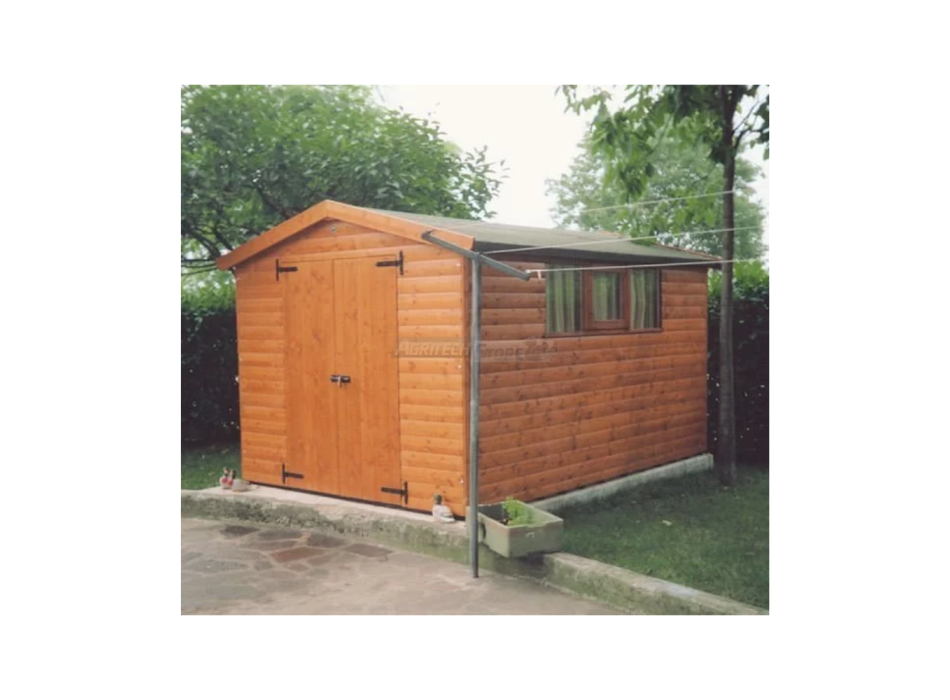

Wooden house Spruce Mod. Besagno cm. 180x130
Wooden house full of floor and roof frame beads interlocking
Blockhaus, Mod. Besagno (ex Merano) cm. 180x130, and 'a house built entirely in Italy, with certified and guaranteed, then; idea
to design, from design to construction, all in the lodges is designed and built in Italy by highly qualifed.
All wood and 'supplied raw coloring, while the hardware supplied as standard and' galvanized steel.
Typical building block in which the machining (interlocking) allow ease of installation and handling given the limited dimensions and weights of the individual elements. The walls of the house are made with boards mounted horizontally overlapping one another.
The assembly of our houses and 'very simple and fast.
In each package
includes installation instructions and hardware kit.

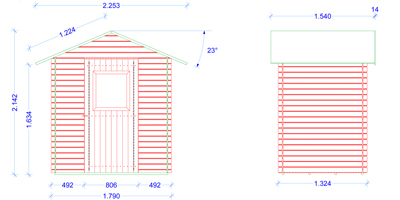

| Wooden house Blockhaus structure with beads Cm. 180x132 |
| Exterior dimensions in cm. |
179x132 |
| Interior Dimensions in cm. |
176x129 |
| Maximum height in cm. |
214 |
| Height in cm min. |
163 |
| Structure |
Beads interlocking 14 mm. |
| Port: type and size |
Single Glass |
| Windows: type |
1 on port |
| Overhead |
OSB 9 mm. |
| Roof coating |
Bituminous layer waterproof |
| Floor type |
17 mm solid fir planks |
Tolerances:
The trade measures outside of houses differ in length of max 1 cm.
The tolerance of the thickness of the plates is ± 1 mm, the width planks ± 5 mm.
