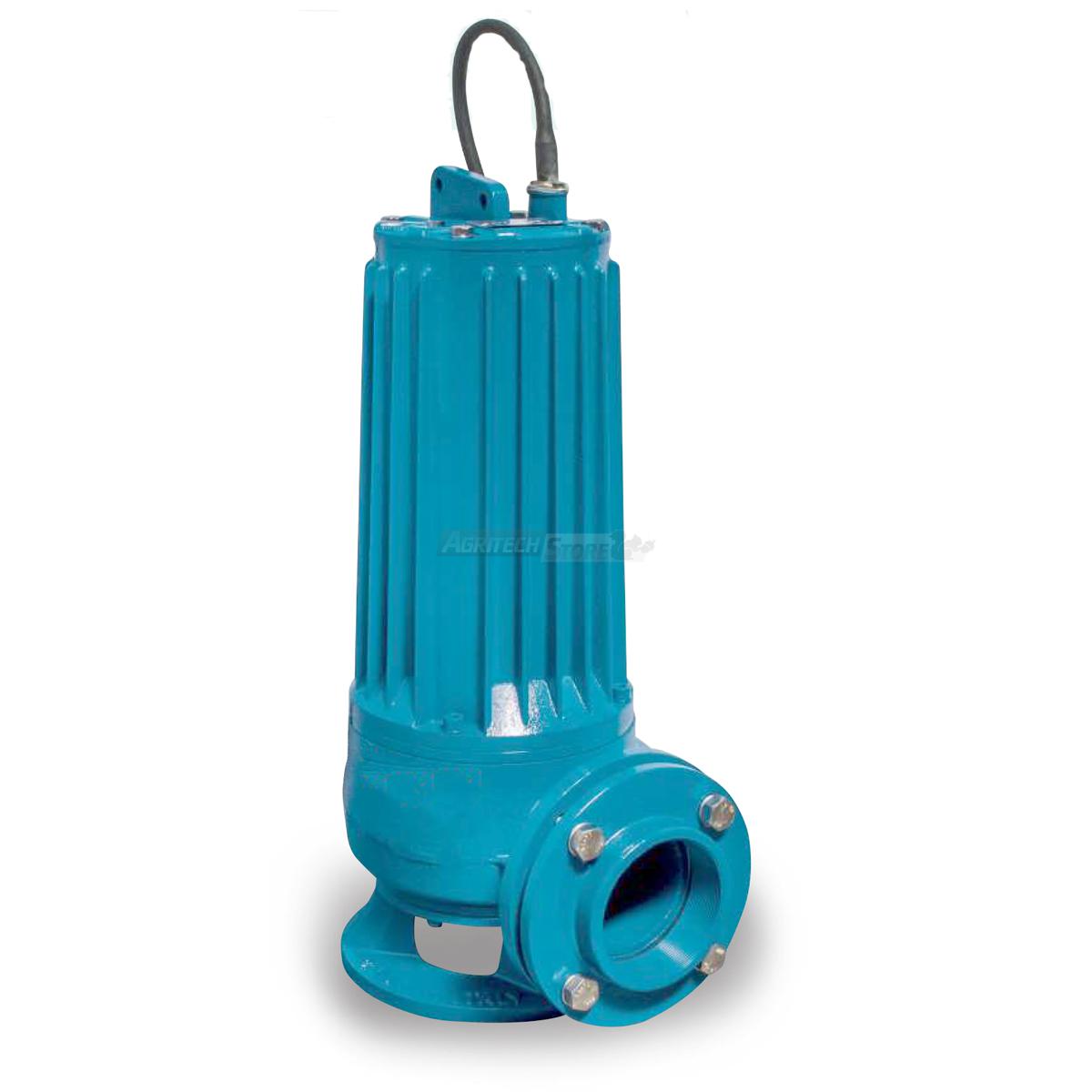

Submersible three phase submersible electric pump PROFI 85-7.5
APPLICATIONS
The SQ series electric pumps are the solution to the problems of conveying public water, liquids from purifiers, sewage systems, livestock farms, slaughterhouses and sausage factories, foundries, the agricultural sector and irrigation. Applicable in the industrial and paper industries, in residential civil plant engineering, in contact with industrial muds of low or medium density.
Electric pumps with open single-channel impeller that offers wide free passages and excellent yields.
LIMITS OF USE
- Liquid temperature up to 35 ° C (for domestic use according to EN 60335-2-41), max liquid temperature: 50 ° C (for other uses);
- Maximum depth of immersion 20 mt. (with cable suitable for length);
- Liquid PH 4 to 10;
- Continuous service with completely submerged pump;
- Liquid density 1,2 Kg / dm ³;
ENGINE
- Class F insulation;
- IP 68 protection;
MATERIALS
- Motor body: cast iron;
- Pump body: cast iron;
- Impeller: cast iron;
- Motor shaft: AISI 304 stainless steel;
- Double mechanical seal in oil chamber: ceramic / graphite, silicon / silicon;
| Technical specifications |

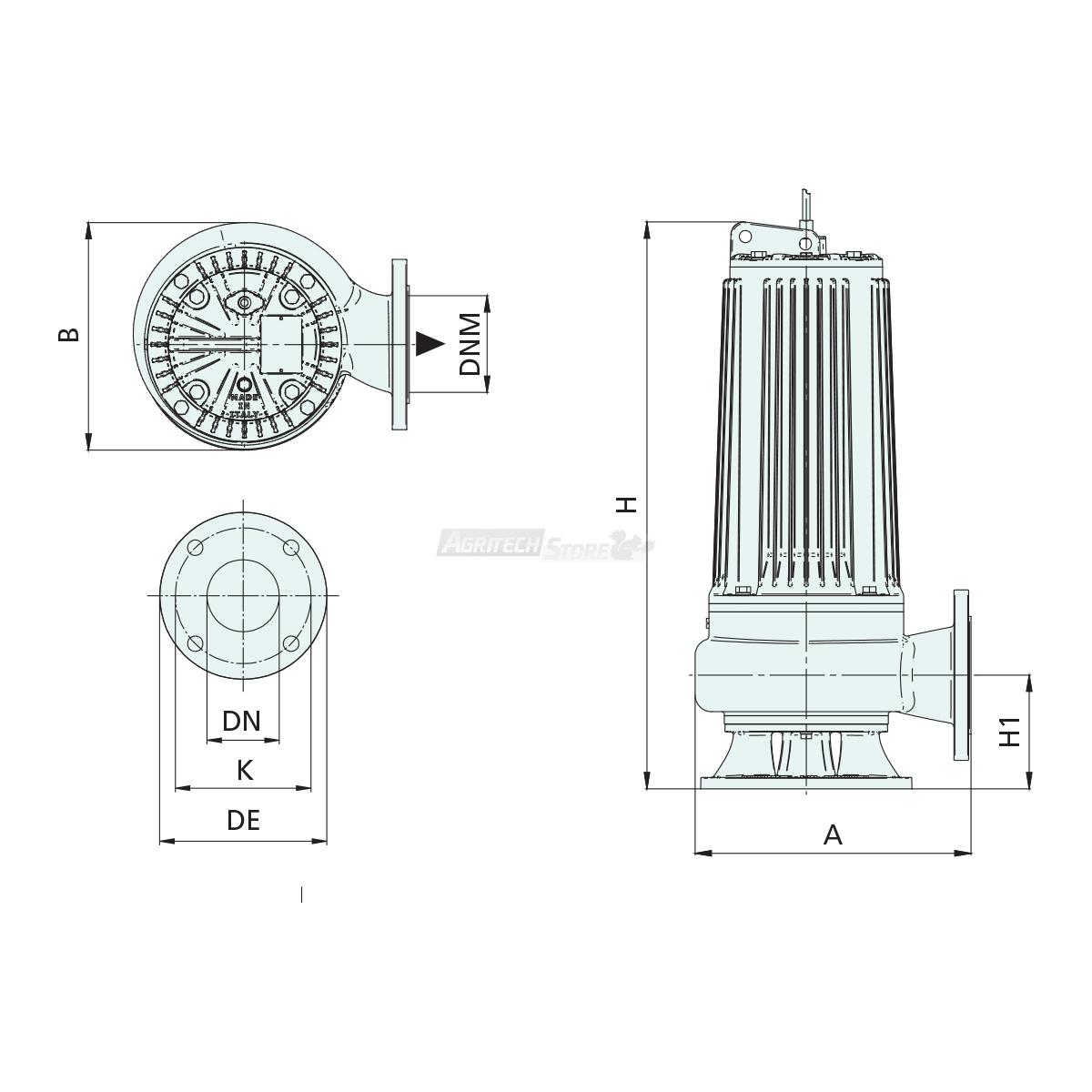

| Dimensions mm |
DN 100
DE 210
K 170 |
| Holes |
n. 4 Ø 19 |
| Flanges |
4 '' |
| Dimensions mm |
A 330 B 280 H 700 H1 130 |
| Solid passage mm |
Ø 70 |
| cable |
10 mt H07RNF |
| Pack size mm |
368x797x415 |
| Weight |
107,50 kg |
