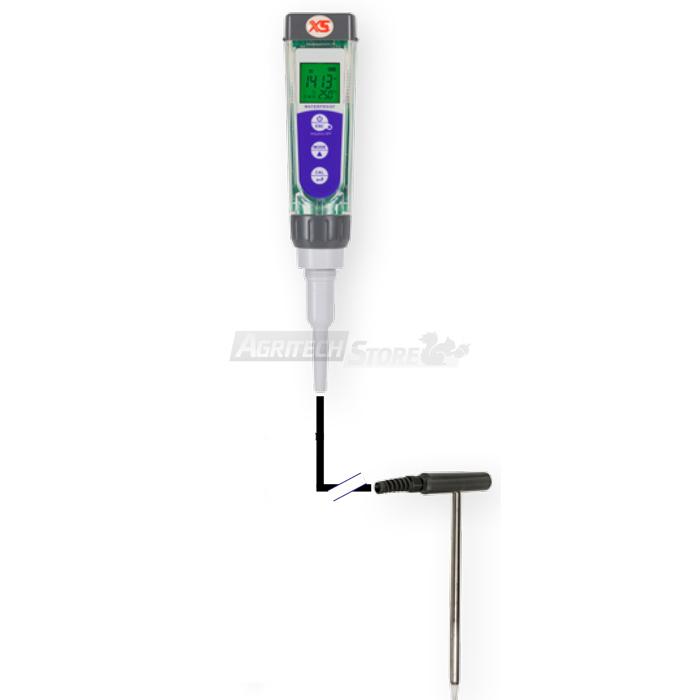

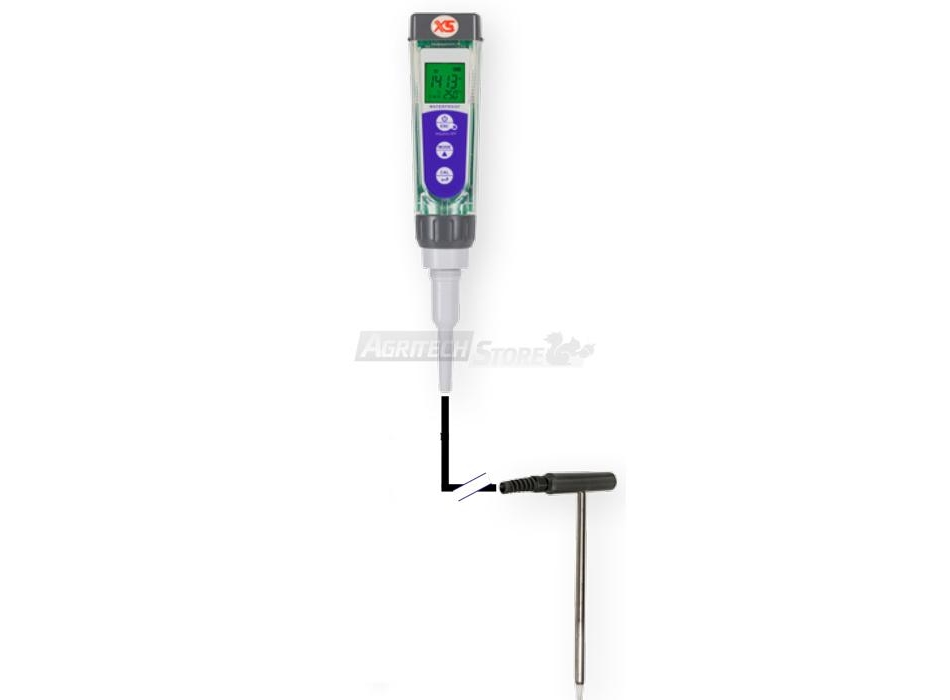

COND 5 Tester with Soil Probe
The COND 5 portable conductivity meter, offered by Agritechstore, is IP67 waterproof and can measure conductivity, TDS, and salinity. Automatic scale change.
Equipped with a microprocessor and a long-lasting interchangeable electrode. Large 3-color LCD display indicating the calibration standards used and measurement stability.
3-point push-button calibration with 3 standard values to choose from 84, 1413 µS and 12.88 mS.
Temperature reading.
Automatic temperature compensation with TR = 20/25°C and adjustable coefficient TC = 0.00…4.00%/°C. TDS factor: 0.40…1.00. Self-diagnosis messages. Power supply 4 1.5V AAA batteries, also compatible with rechargeable batteries. Auto power off.
The Kit includes:
- instrument with probe cell for soil, C=1
- 1x55ml standard solutions 1413 µS and 12.88 mS
- additional glass for calibration
- strap
- handkerchiefs
- dedicated briefcase
| COND 5 Technical Specifications |
| Measuring Field |
0...200 µS -0...2000 µS -0...20 mS |
| Resolution |
automatic scale |
| Accuracy |
±1% full scale |
| Calibration points |
1...3 |
| Indication of standards used for calibration |
Yes |
| TC temperature coefficient |
0.00...4.00%/°C |
| TR reference temperature |
20/25°C |
| TDS measurement range |
0.1 ppm ...10 ppt |
| TDS Factor |
0.40...1.00 |
| Accuracy |
± 1% full scale |
| Salinity measurement range |
0.01...10g/l |
| Temperature measurement range |
0...50 |
| Resolution / Accuracy |
0.1/± 0.2°C |
| Unit of measurement |
°C/°F |
| Auto power off |
after 8 minutes |
| Display |
3-color backlit LCD |
| Degree of protection |
IP67 |
| Diet |
4x1.5V AAA batteries |
| Battery life |
>200 hours |
| Instrument / Sensor Warranty |
1 year / 6 months |
| Dimensions (Ø x L) mm |
35 x 175 |
| Weight |
130 g |
| Technical specifications of the VPT Soil COND 5 cell |
| measurement |
land |
| work camp |
10 µS ...50 mS |
| cable |
1.5 m |
