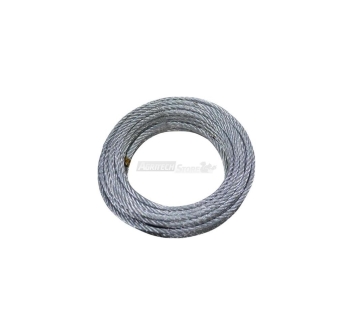

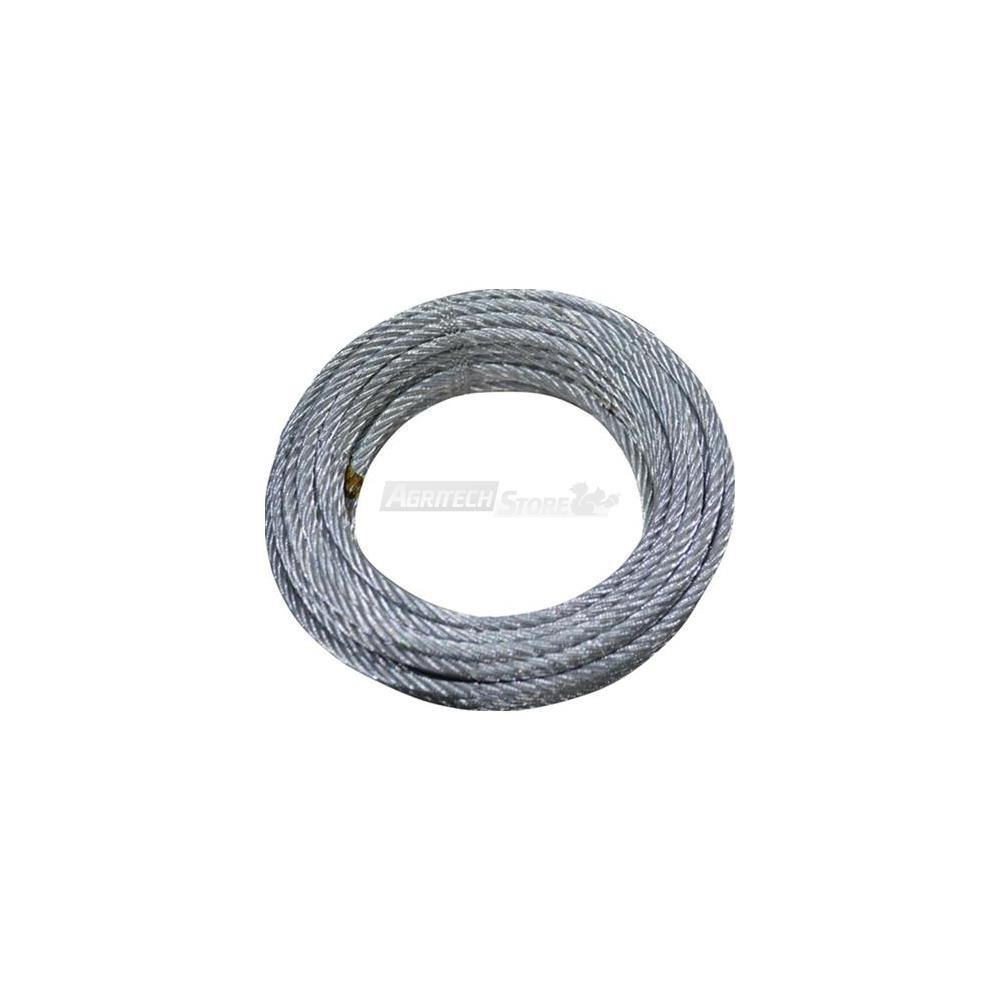

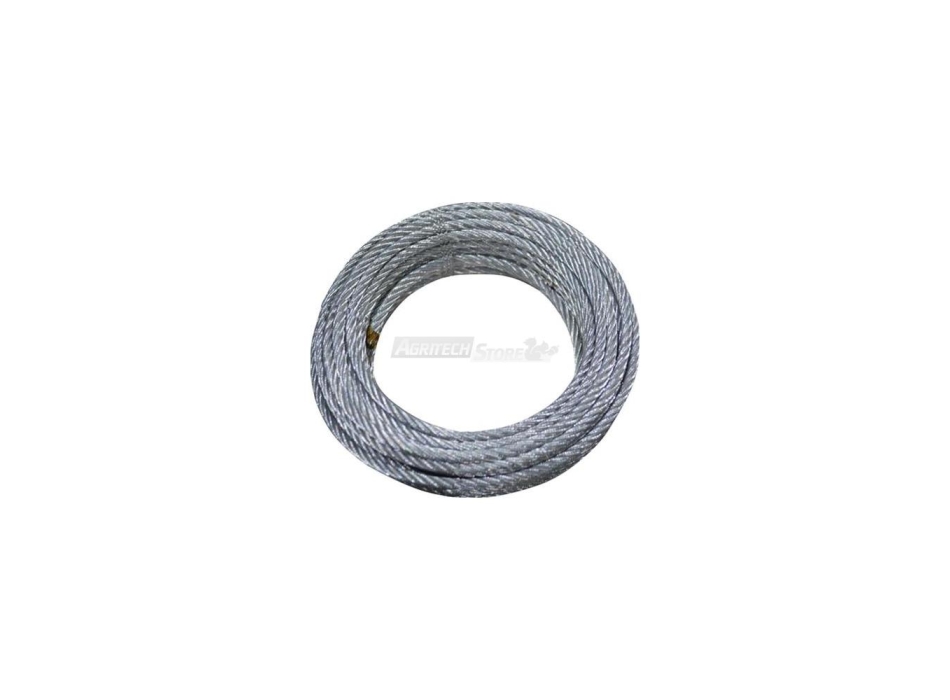

133-strand steel rope

starting from € 1,30 € 1,60 -19%
Previous price: € 0,79
Meters
133-strand steel rope

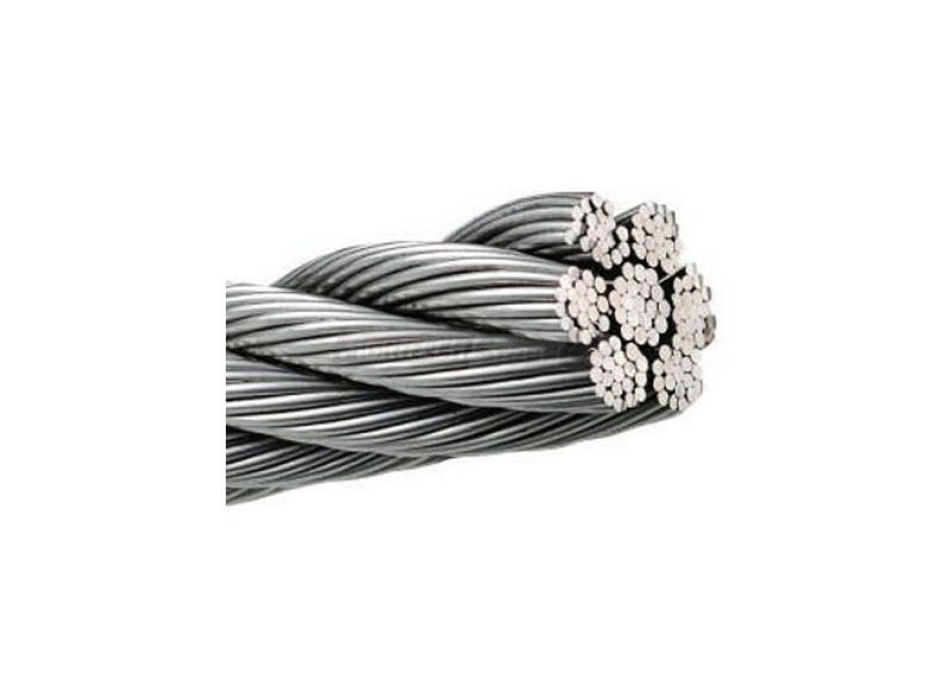

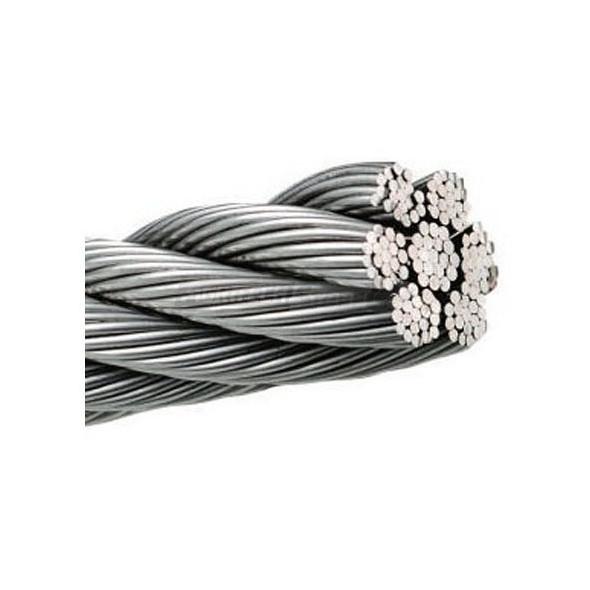

  • Formation: 114 wires + AM (6X19+WC) ref. UNI ISO 2408:1992/UNI EN 12385
  • Galvanized steel wire rope according to UNI EN 10264-2:2004
  • Applications: Winches - Hoists - Pile drivers - Earth moving - General lifting
  • Rope length: at customer's request
  • Unit resistance: 1770 N/mm²
  • Wrapping: right cruciate ligament
  • The price shown is per linear metre of rope
Agritechstore 133-strand steel wire rope at great prices and fast shipping
Technical specifications
Diameter
rope
(mm)
Weight
(Kg/m)
Min. Load
Break
(Kg)
Min. Load
Break
(kN)
Diameters
external wires
(mm)
4 0.055 1.090 10.69 0.26
5 0.090 1.621 15.90 0.32
6 0.150 2.315 22.70 0.49
8 0.260 4.109 40.30 0.64
10 0.400 6,424 63.00 0.80
12 0.580 9,249 90.70 0.96
14 0.790 12,644 124.00 1.12
16 1,020 16,417 161.00 1.28
