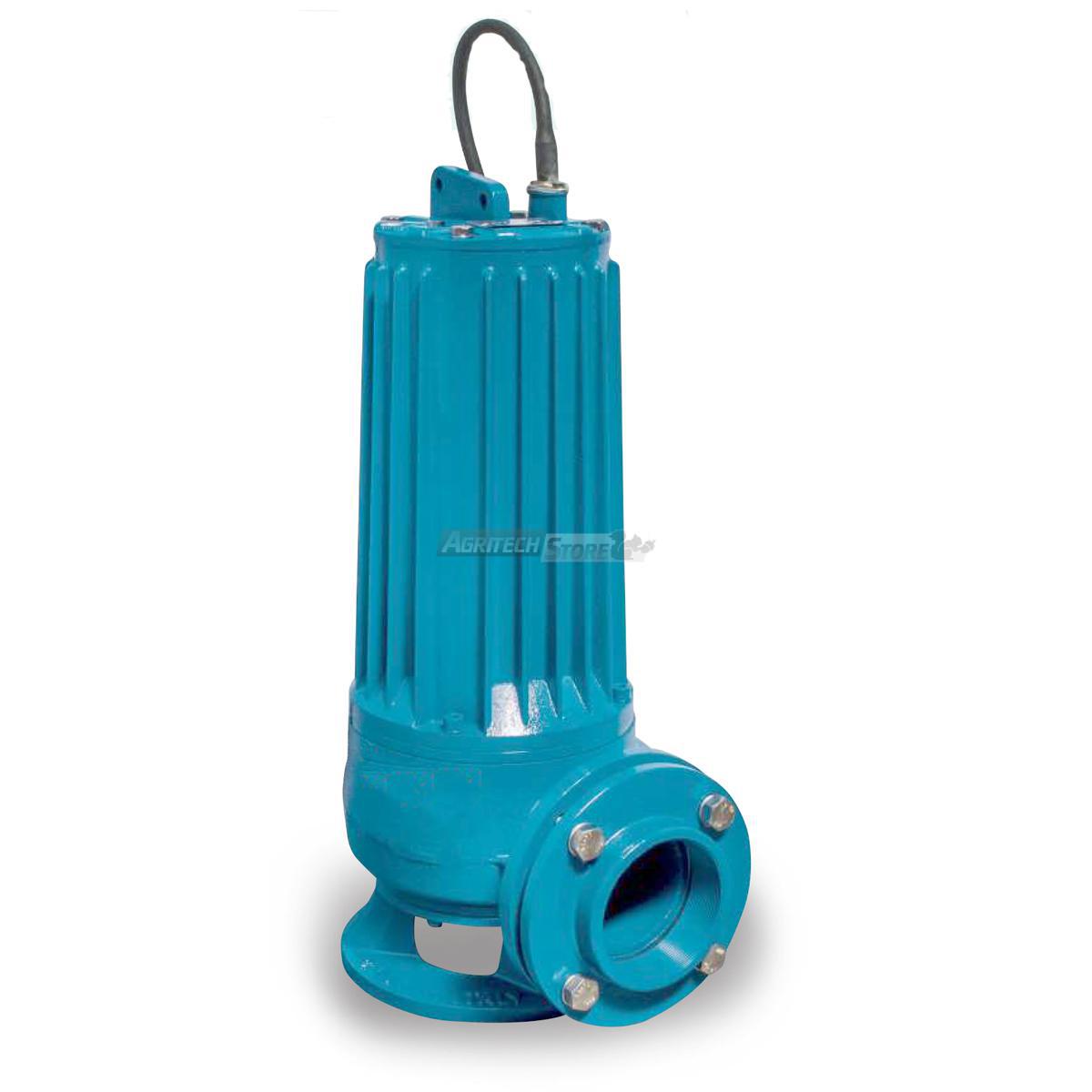

Submersible three phase submersible electric pump PROFI 65-5.5
APPLICATIONS
The electric pumps of the SQ series, thanks to the numerous devices applied, constitute the solution to the problems of conveying public water, liquids from purifiers, sewage systems, zootechnical farms, slaughterhouses and sausage factories, foundries and the agricultural sector. and for irrigation. Applicable in the industrial and paper industries, in residential civil plant engineering, in contact with industrial muds of low or medium density.
Electric pumps with open single-channel impeller that offers wide free passages and excellent yields.
LIMITS OF USE
- Liquid temperature up to 35 ° C (for domestic use according to EN 60335-2-41), max liquid temperature: 50 ° C (for other uses);
- Maximum depth of immersion 20 mt. (with cable suitable for length);
- Liquid PH 4 to 10;
- Continuous service with completely submerged pump;
- Liquid density 1,2 Kg / dm ³;
ENGINE
- Class F insulation;
- IP 68 protection;
MATERIALS
- Motor body: cast iron;
- Pump body: cast iron;
- Impeller: cast iron;
- Motor shaft: AISI 304 stainless steel;
- Double mechanical seal in oil chamber: ceramic / graphite, silicon / silicon;

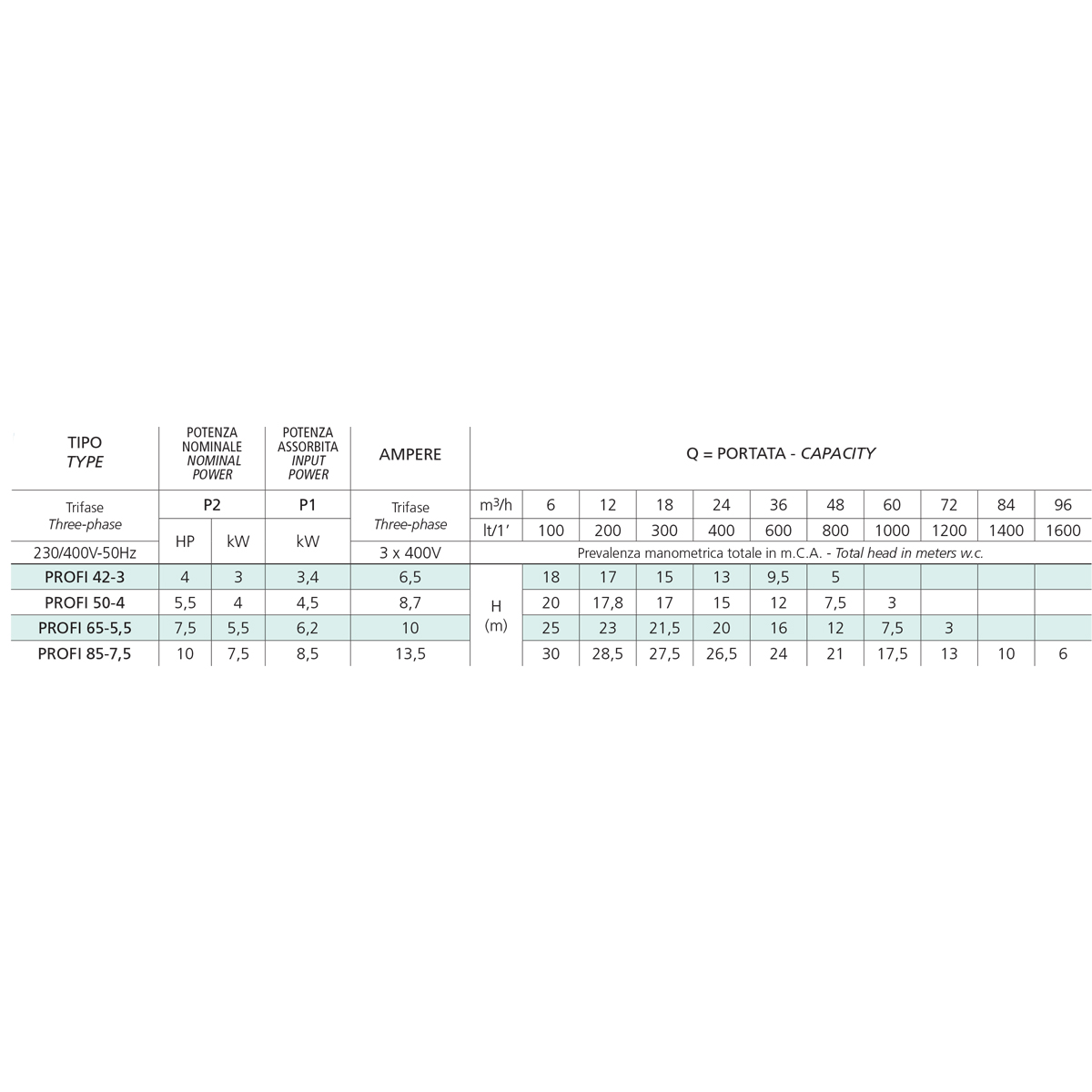

Technical specifications PROFI 65-5.5 |

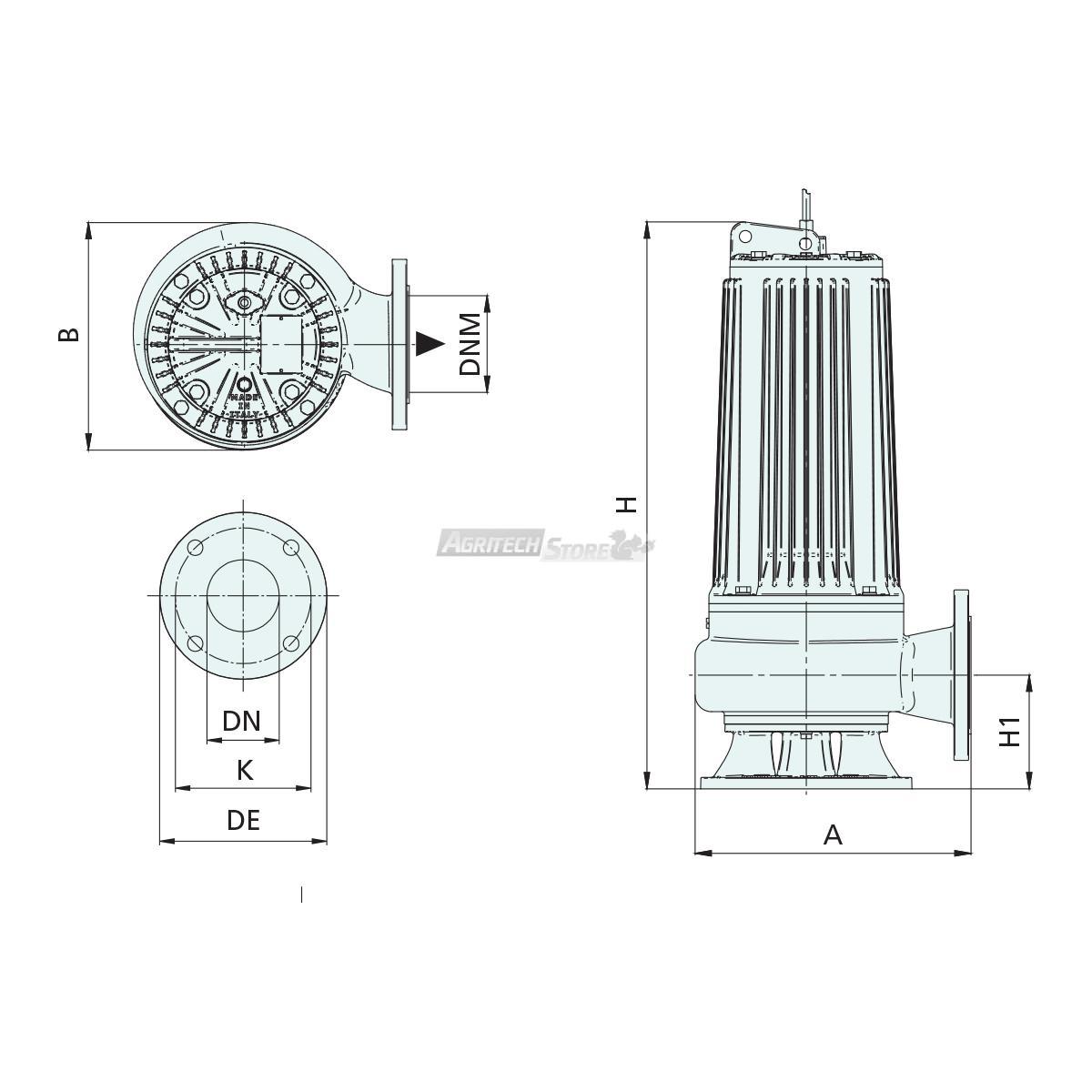

Dimensions mm |
DN 100
DE 210
K 170 |
Holes |
n. 4 Ø 19 |
Flanges |
4 '' |
Dimensions mm |
A 330 B 280 H 670 H1 130 |
Solid passage mm |
Ø 70 |
cable |
10 mt H07RNF |
Pack size mm |
368x797x415 |
Weight |
Kg 101,50 |
