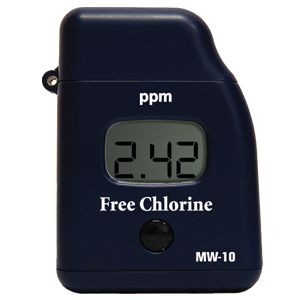

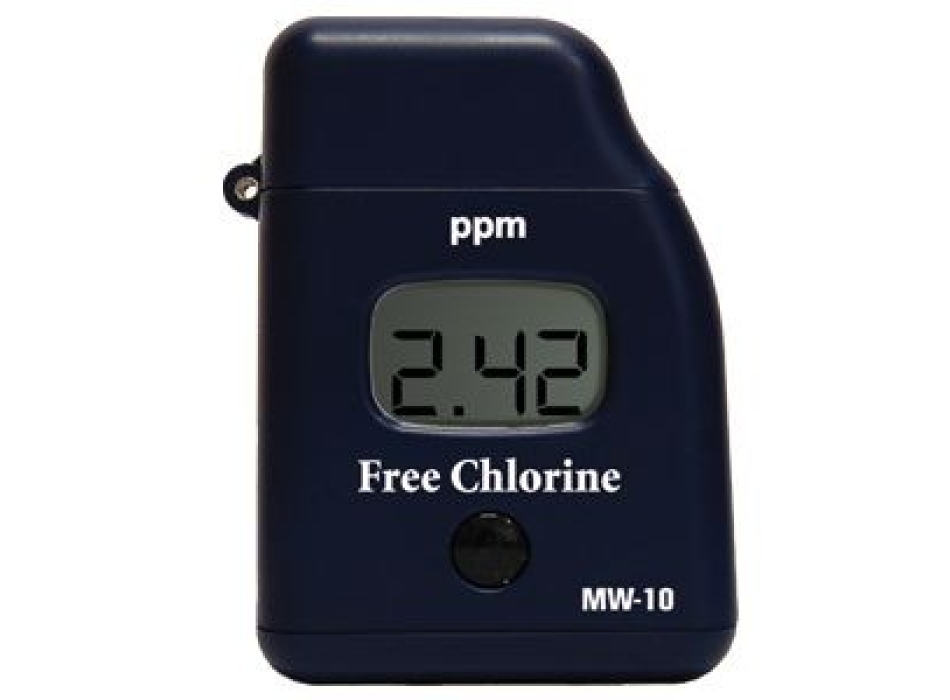

Photometer MW10
Portable photometer for
Free Chlorine: range: 0.00 to 2.50 mg / L Cl2, precision: 3% of reading.
Supplied in carton box including 2 cuvets, reagents and instruction manual.
The revolutionary new range of Milwaukee photometers are compact and easy to handle, have a modern design, and are used to measure the free chlorine (MW10),
Total Chlorine (MW11) , phosphate (MW12), Iodine (MW13) and Iron (MW14).
Its main advantages are its small size and ease offered by direct measurement.
In a few minutes you will have the result on the LCD while the instrument will directly show the concentration of the specific component in ppm.
The instrument switches off automatically after 2 minutes of inactivity to extend battery life.
With the addition of specific reagents, the water sample has a degree of coloration that is proportional to the concentration of the measured parameter.
The measures of this photometer staining, passing through a beam of light of the sample, produces energy with a specific wavelength that is absorbed by the substance (sample), the photometer determines the coloration of the sample by measuring the transmission or absorption of light at said wavelength.
The photometer uses a microprocessor to calculate the concentration and present the results on the screen.
The scope is very broad and includes the
'agriculture, drinking water analysis, aquariums, swimming pools or fish farms.
Specifications Photometer 10 MW |
Scale Reading |
00 to 2.50 ppm |
Resolution |
0:01 ppm |
Precision |
± 0.03 ppm ± 3% of reading at 25 ° C |
Typical EMC DEV. |
± 0.01 ppm |
Emitting Diode |
Light source 525 nm |
Light Detectors |
Silicon photocell |
Method |
Adaptation of the USEPA Method 330.5.
The reaction between free chlorine and the DPD reagent leaves a pink tint in the sample |
Environment |
0 to 50 ° C (32 to 122 ° F) max. 95% RH non-condensing |
Battery Type |
1 x 1.5V AAA |
Auto Power Off |
After 2 minutes of non-use |
Dimensions |
81.5 x 61 x 37.5 mm (3.2 x 2.4 x 1.5 ") |
Weight |
64 g (2.25 oz) |
OPTIONAL ACCESSORIES:
Reagent type:
- 2720116 Reagent Free Chlorine powder, 25 pcs.
Other Accessories:
- 3000100 glass cuvettes with cap (2 pcs)
- 3000200 cloth cleaning test tubes (2 pcs)
- 3000300 1.5V AAA batteries (4 pcs)
