Multiparameter Tester Kit PC5 pHMetr - Coduttivimetro - Thermometer

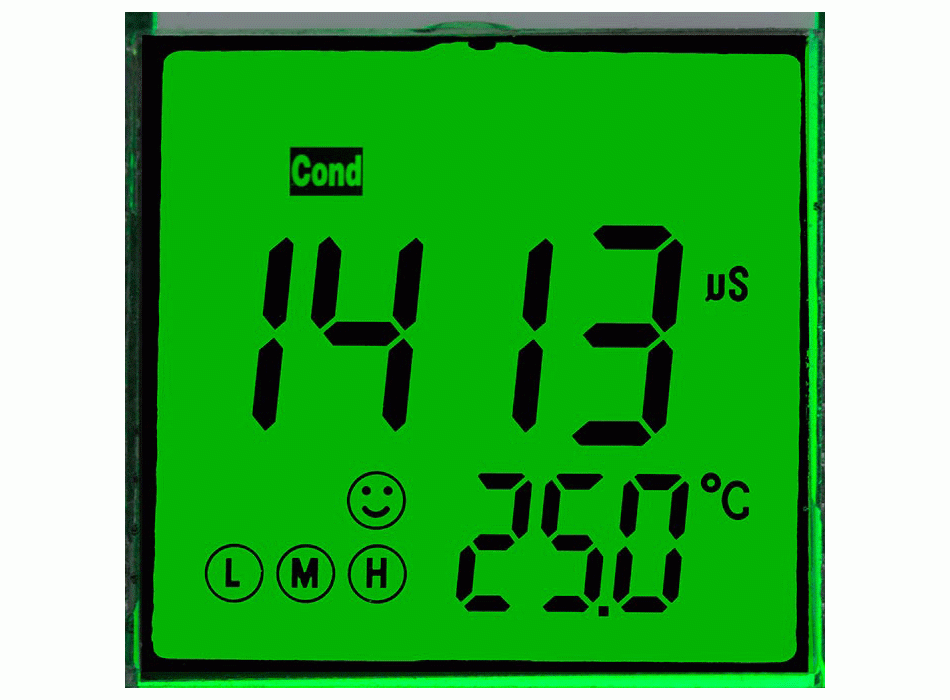

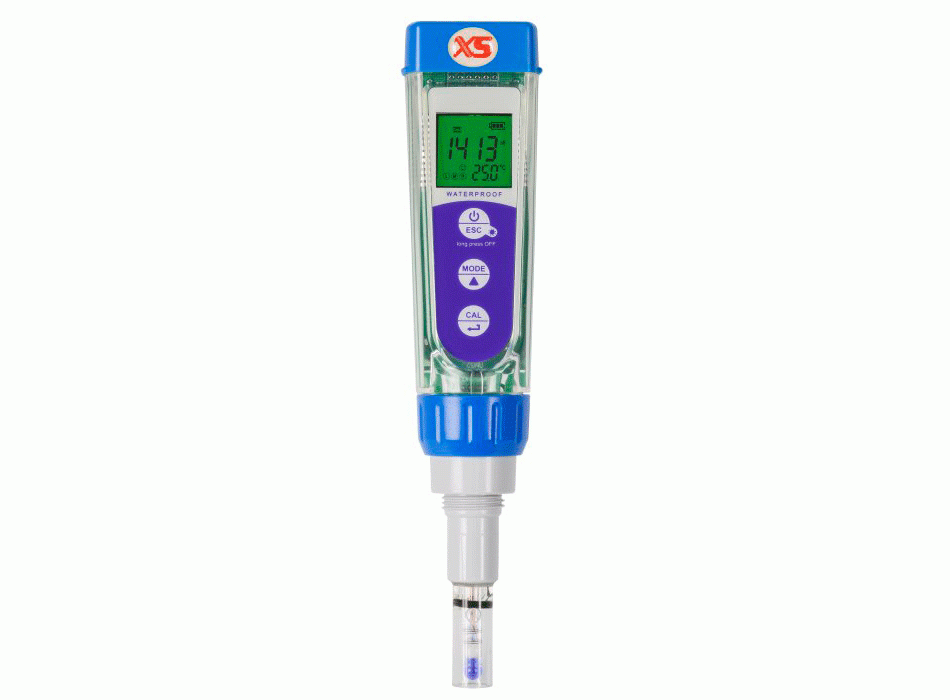

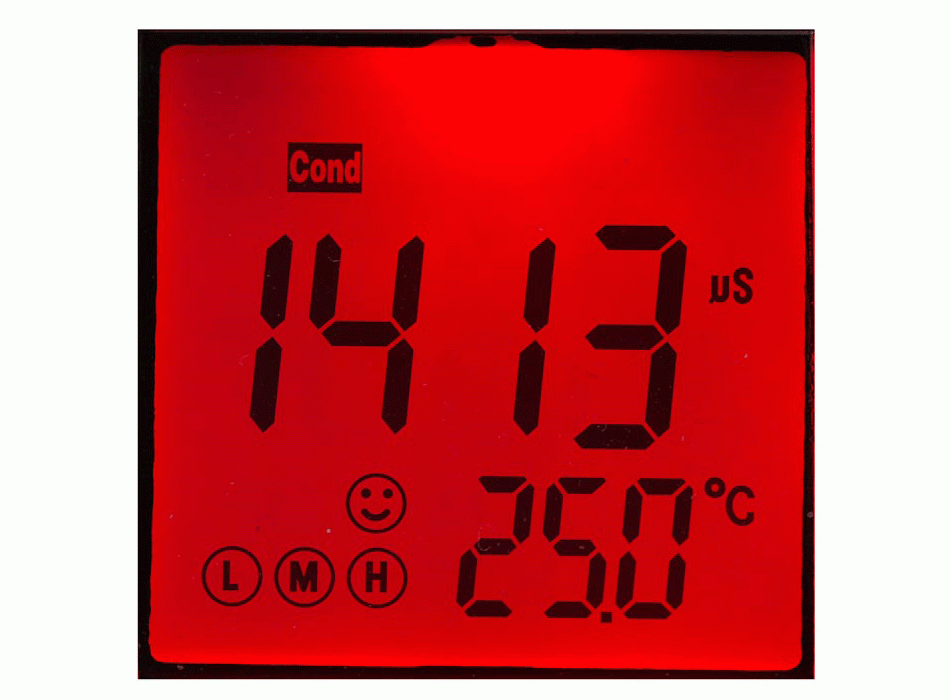

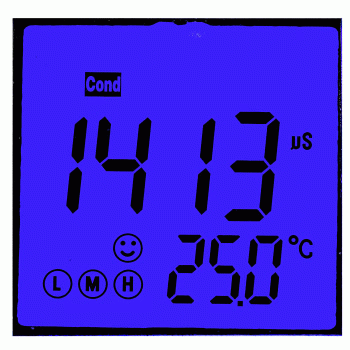

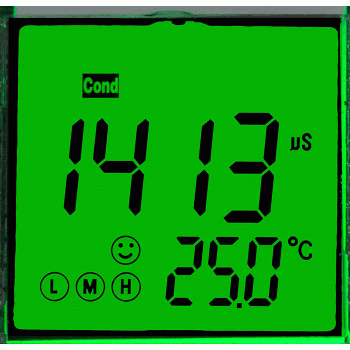

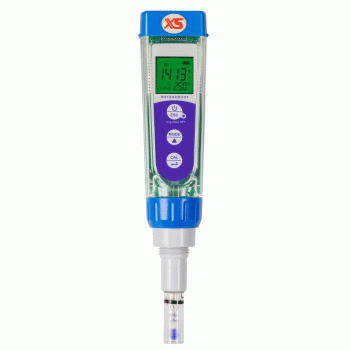

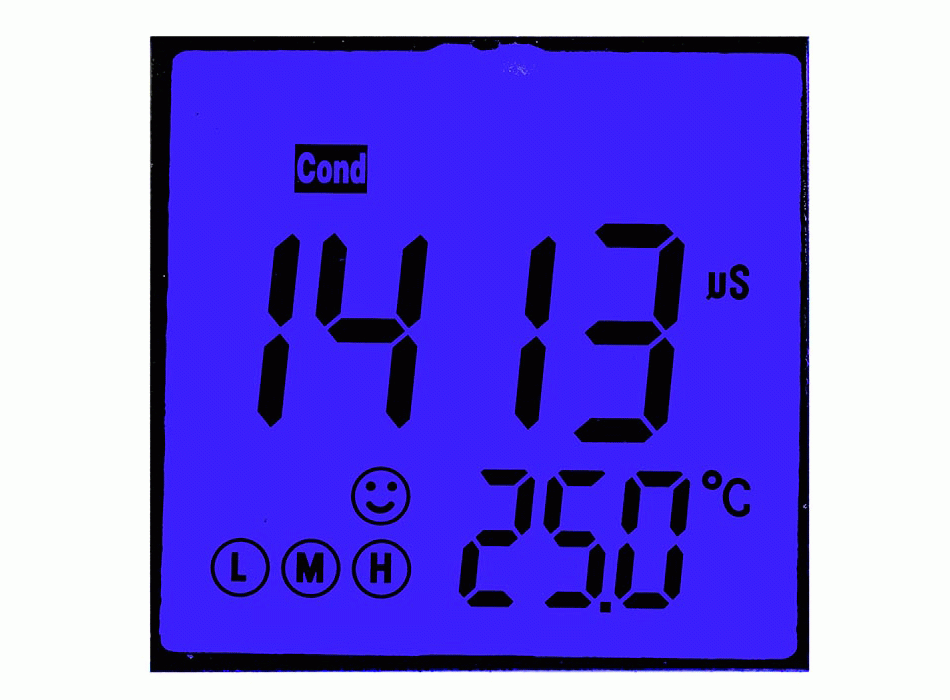

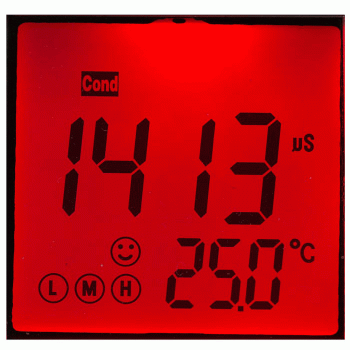

Thermometer portable conductivity meter and watertight IP67. With microprocessor and electrode combined interchangeable high durability. Large LCD display with 3 colors of pads used for calibration and measurement stability.
Applications: Agriculture - water treatment and waste - hydroponics and aquariums - environmental monitoring - swimming pools and spas - food and beverages - cooling towers - galvanic - printing industry - education
pH meter -
PH function:
Resolution 0.01 pH. Calibration button to 3 points with 5 different pads USA to an accuracy of ± 0.01 pH. Reading mV for diagnosis pH or ORP sensor for connection. Temperature reading.
Conductivity function:
Calibration button to 3 points with 3 values of standard choice between 84, 1413 and 12.88 mS mS. Temperature reading. Automatic temperature compensation with TR = 20/25 ° C and adjustable factor TC = 0.00 ... 4.00% / ° C.
Function TDS
TDS factor: 0.40 ... 1.00.

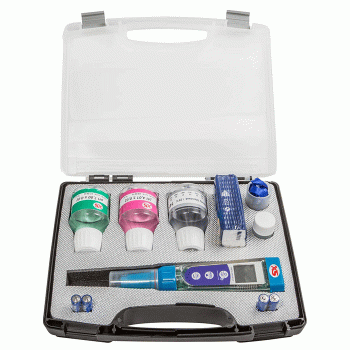

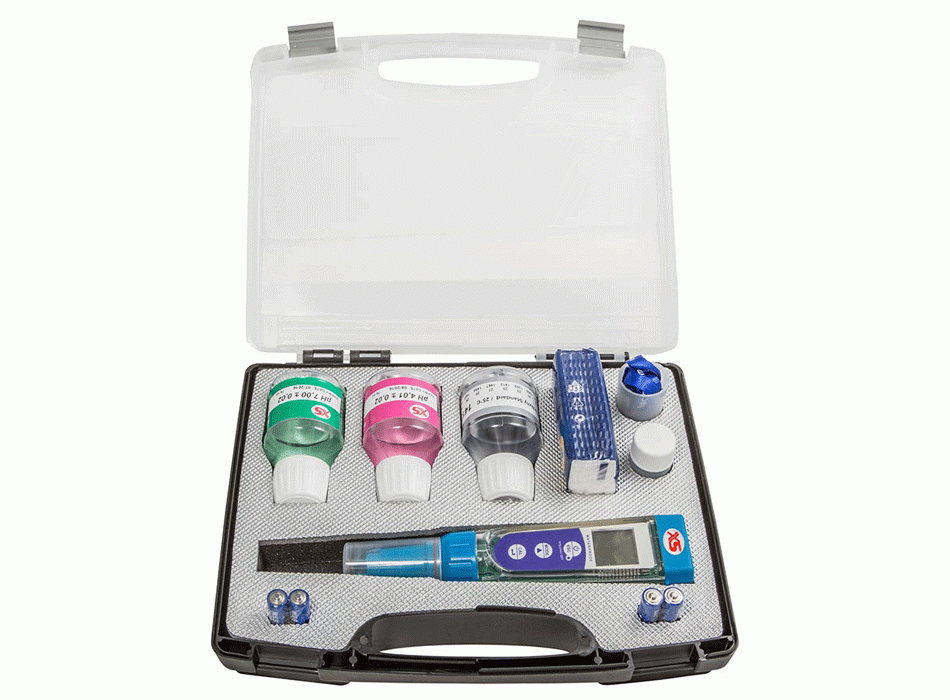

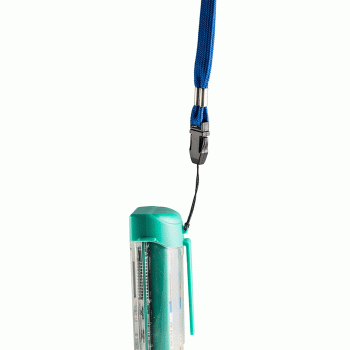

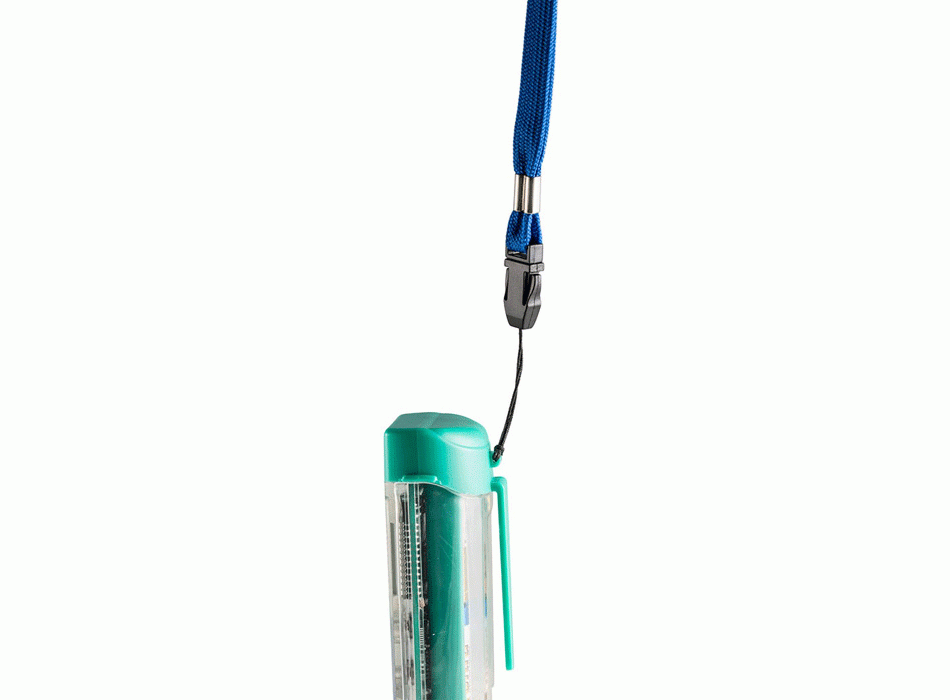

Auto-off. Automatic temperature compensation (0 ... 50 ° C). Messages of self-diagnosis: batteries, errors in calibration. Power supply 4 x 1.5V AAA batteries, also compatible with rechargeable batteries. The kit includes: 1x55ml buffer solutions pH 7 and pH 4, 1x10ml storage solution, 1x55ml standard solution 1413 mS, glass additional calibration, strap, handkerchiefs and briefcase. 2-year warranty on the electronics.
Characteristics |
Measuring range |
pH 2.0 ... 16.0 |
Resolution |
(PH 0.01) |
Accuracy |
± 0.01 |
Indication buffers used x calibration |
Yes |
Indication established 'measure |
Yes |
Alarm electrode status |
Yes |
Unit of measure |
° C / ° F |
Auto Off |
after 8 Minutes |
Battery life |
> 200 hours |
Working temperature |
0..50 ° C (0.1 ° C) |
mV (ORP) measuring range |
mV: ± 1000 mV |
Insulation |
IP67 |
Sensor |
Interchangeable |
CONDUCTIVITY measuring range |
0 ... 200 mS - 0 ... 2000 mS - 0 ... 20 mS |
Resolution |
Auto Range |
Accuracy |
± 1% full scale |
Recognized standards |
84, 1413 mS / 12.88 mS |
Indication standard used for calibration |
Yes' |
TC temperature coefficient |
0.00 ... 4.00% / ºC |
TR reference temperature |
20/25 ºC |
TDS measuring range |
0.1 ppm ... 10 ppt |
TDS factor |
0:40 ... 1:00 |
Accuracy |
± 1% full scale |
Salinity measurement range |
0.01 ... 10g / l |
Temperature measurement range ºC |
0 ... 50 |
Resolution / Accuracy |
0.1 / ± 0.2 ° C |
Unit of measure |
° C / ° F |
Dimensions (Ø x L) mm |
35 x 175 |
Weight |
130 g |
Guarantee instrument / sensor |
2 years / 6 months |
