Mito PIC Series radio control complete with wiring for ALL the Marche

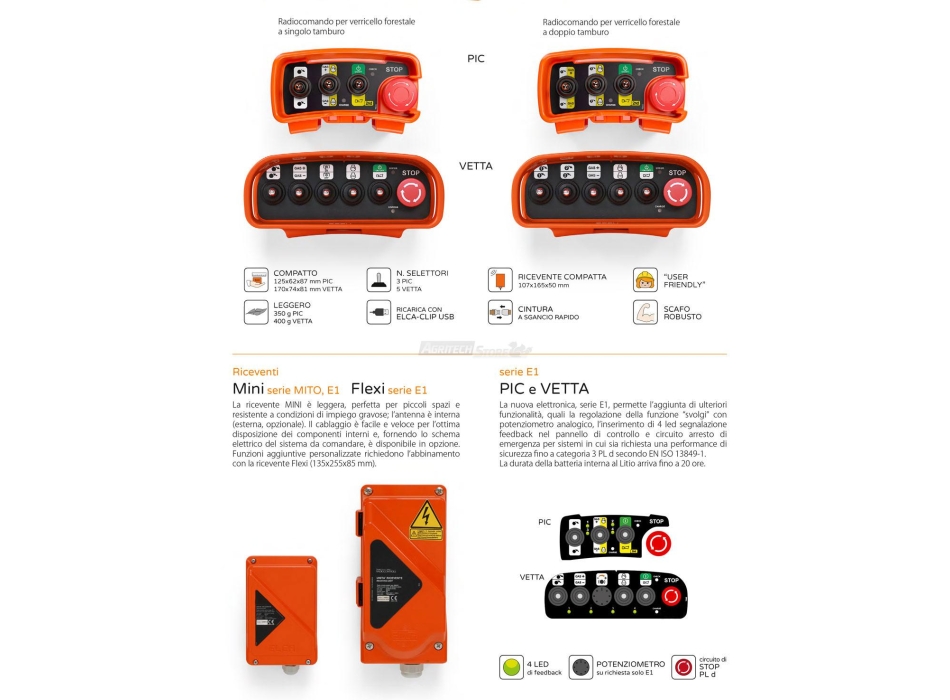

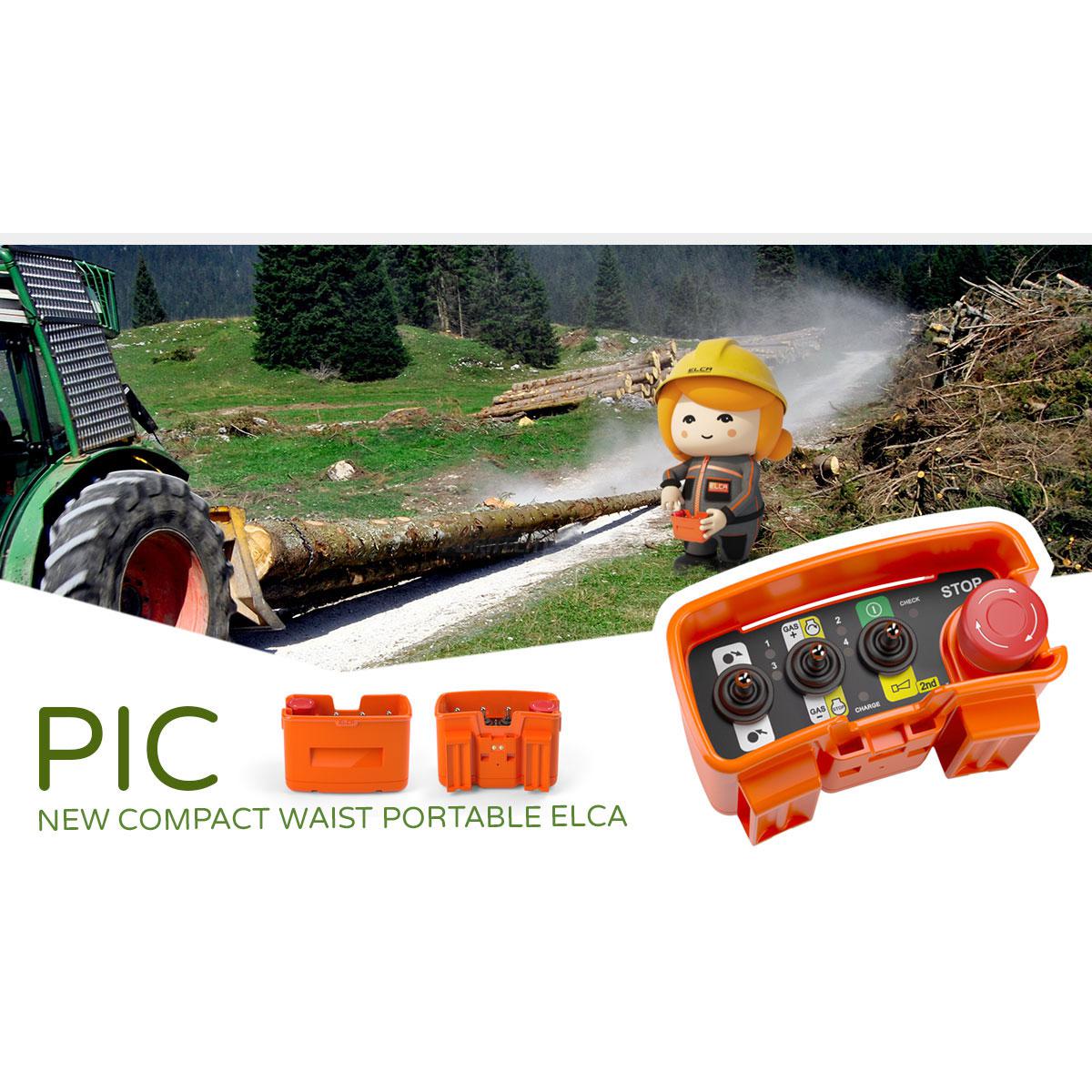

PIC is a compact, SMALL and light, robust and reliable baby carrier to control forestry winches without being tied to a cable. It is compatible with MITO and E1 electronics.

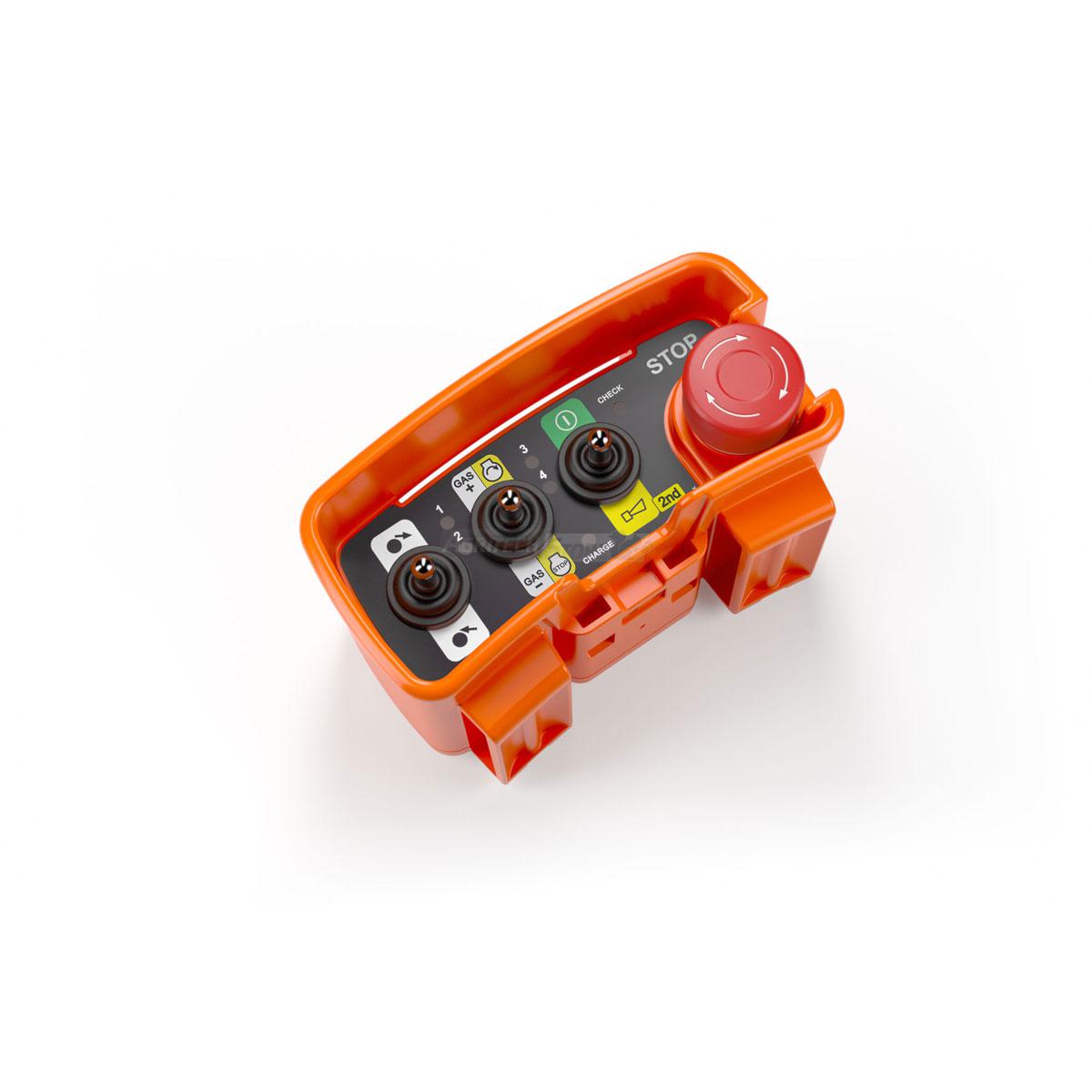

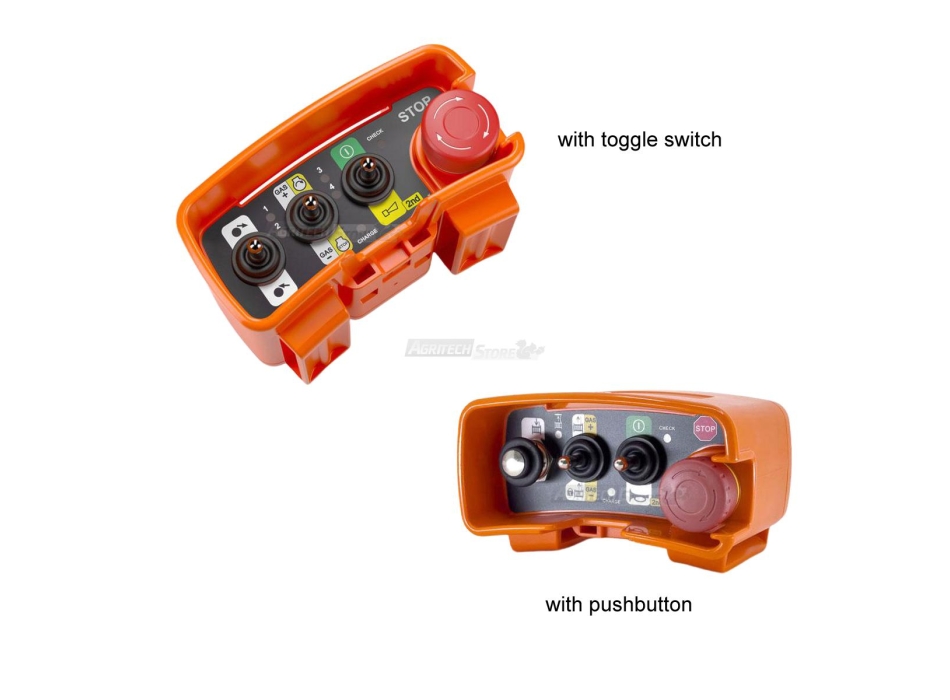

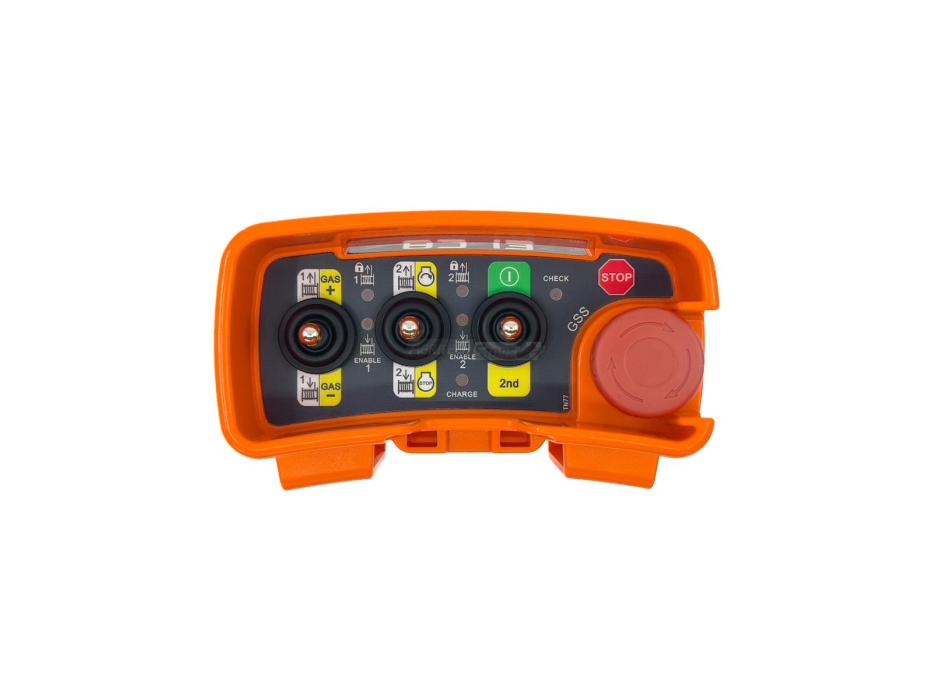

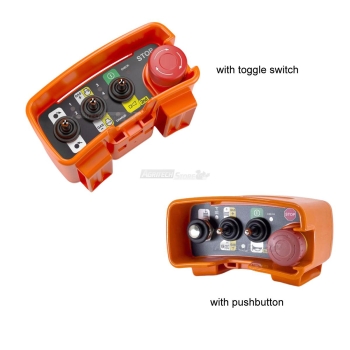

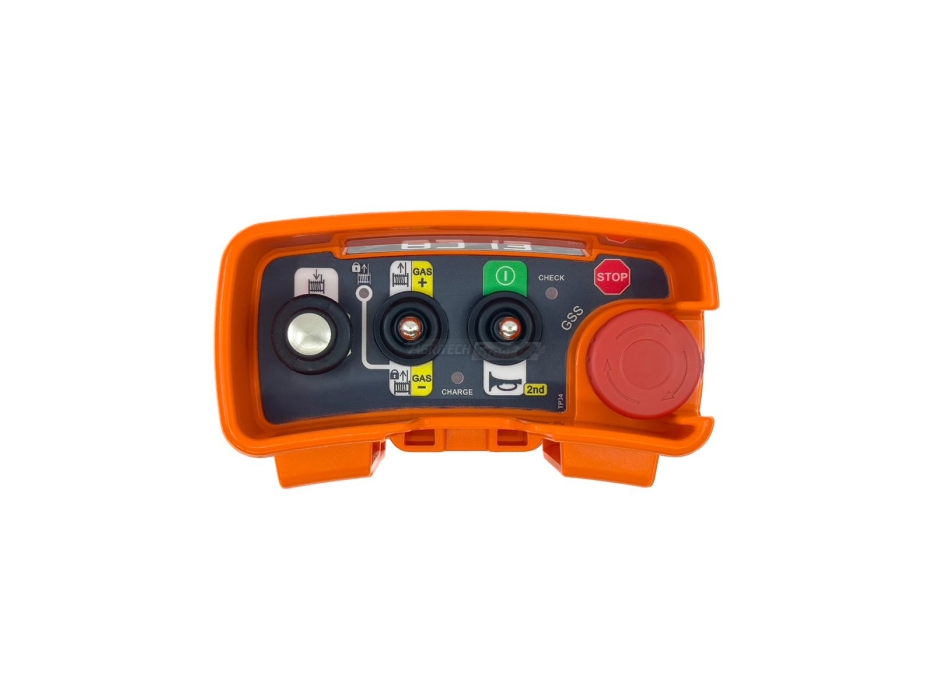

The standard configuration has 3 toggle switches and a mushroom stop button to run 5 commands, up to 8 with a second function.
The anti-reflection panel of the controls, customizable, is made of durable materials to be effective with heavy duty. The "CHECK" led, flashing, indicates that the receiver is connected and ready to receive the commands sent.
The power supply is with an internal replaceable lithium battery , which can reach up to 50 hours of continuous transmission.
Charging with USB power supply and ELCA-CLIP connection cable.
LBT (Listen Before Transmit) transmission system with automatic, bidirectional search of the best free frequency.
Unique identification code, immune to possible interference in commands coming from other systems.

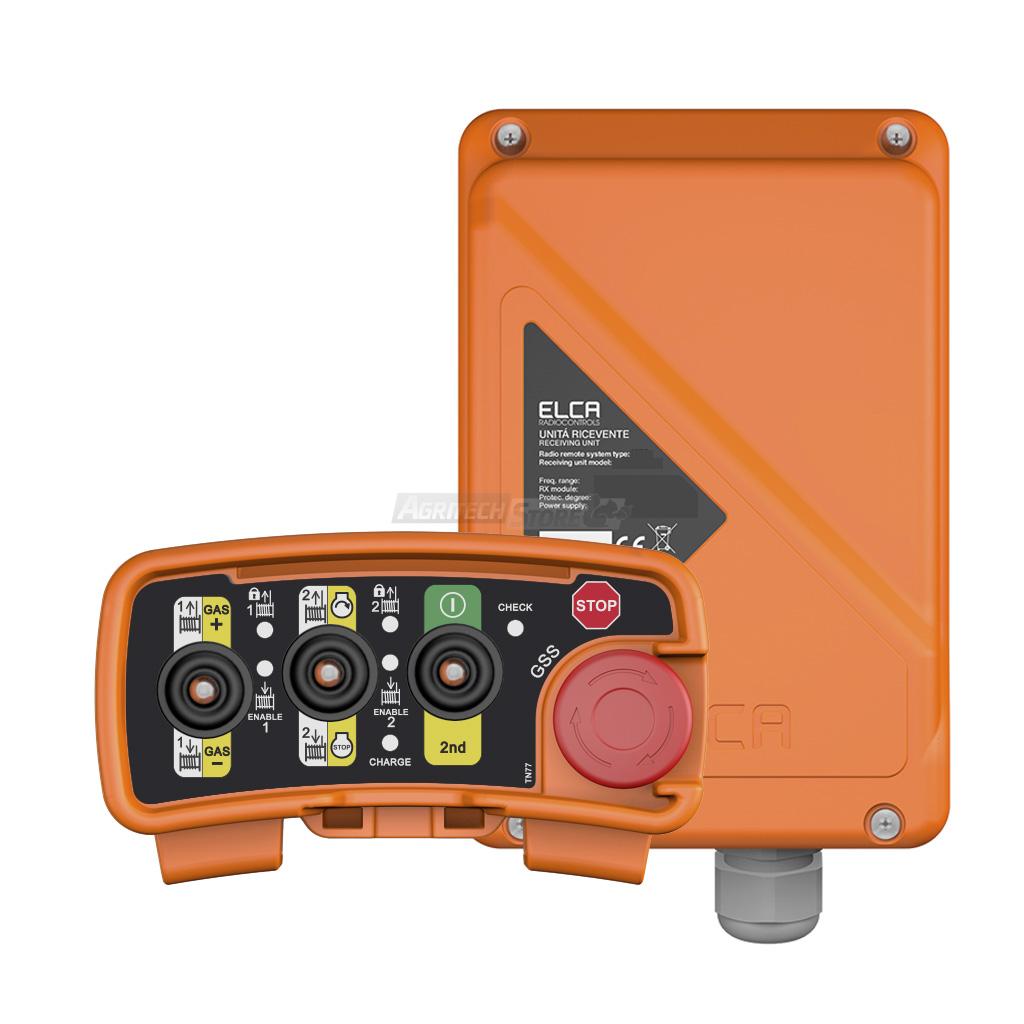

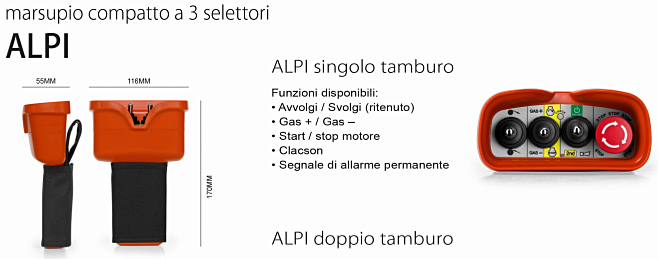

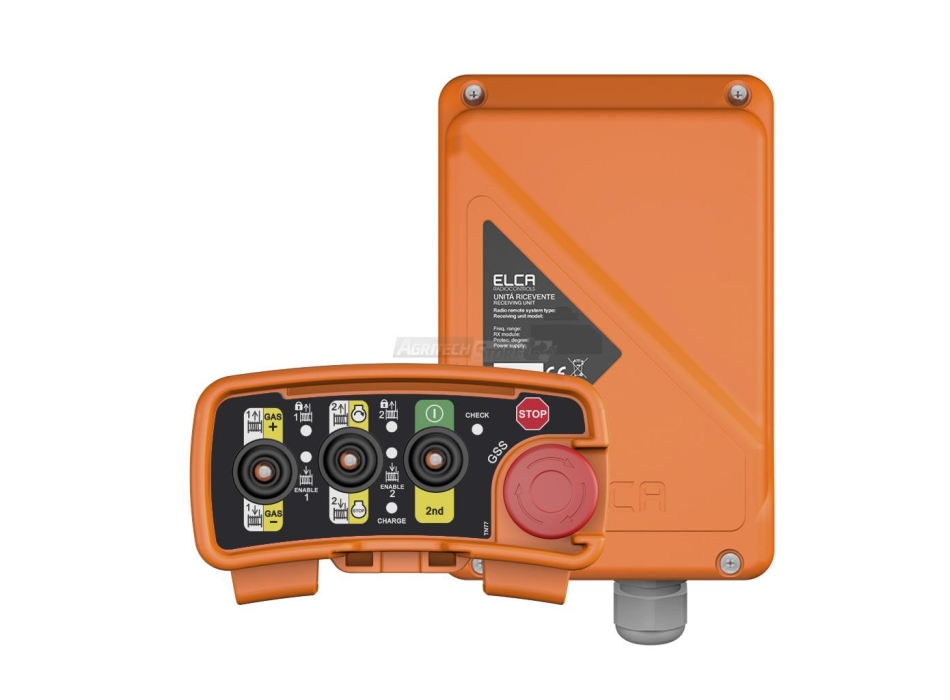

The PIC transmitter can replace the ALPI model, matching the already installed MINI receiver.
Peculiarity ':

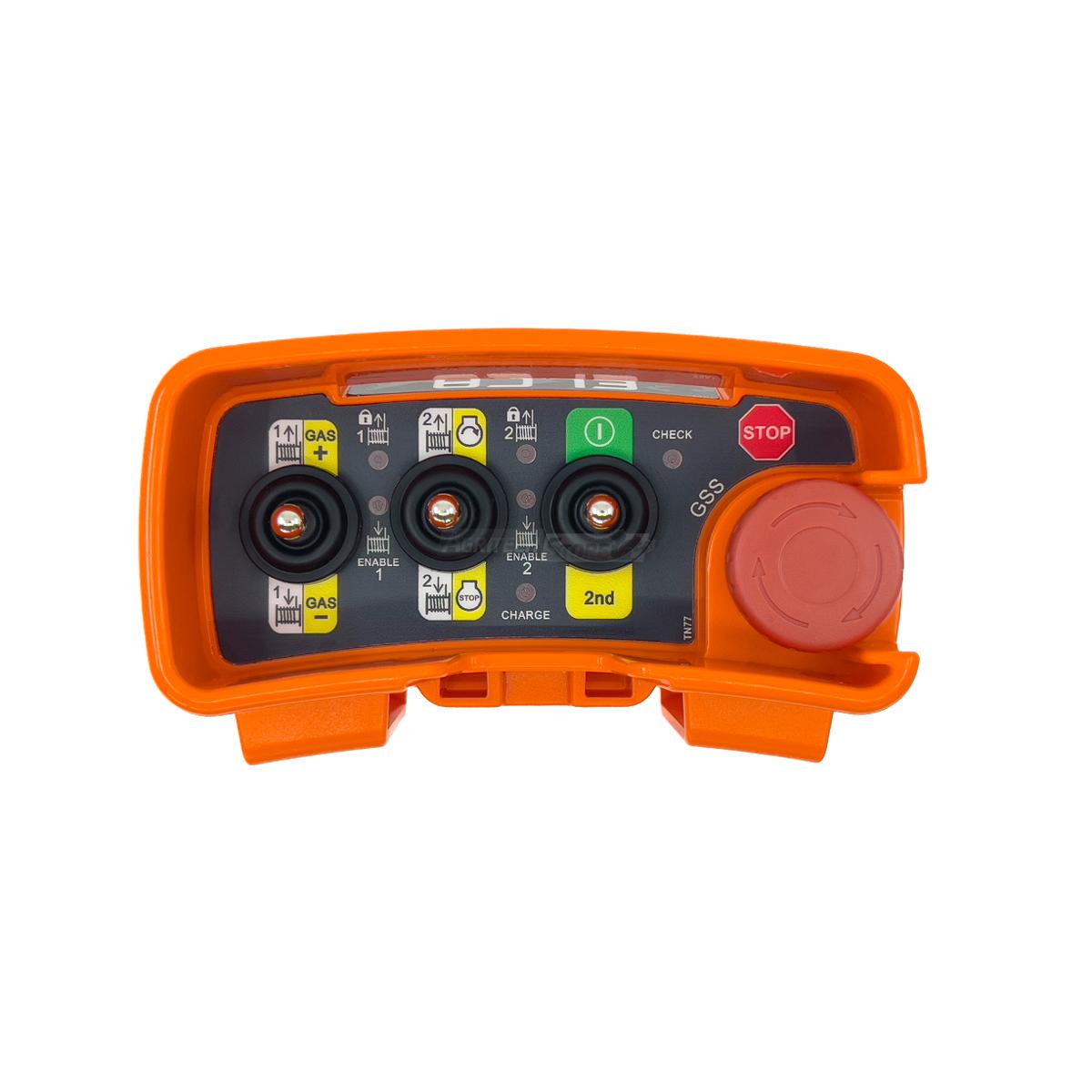

The new E1 series electronics allows the addition of additional functions, such as the adjustment of the "unwind" function with an analogue potentiometer, the insertion of 4 feedback signal LEDs in the control panel and emergency stop circuit for systems where required a safety performance up to category 3 PL d according to EN ISO 13849-1.
Belt and feeding:

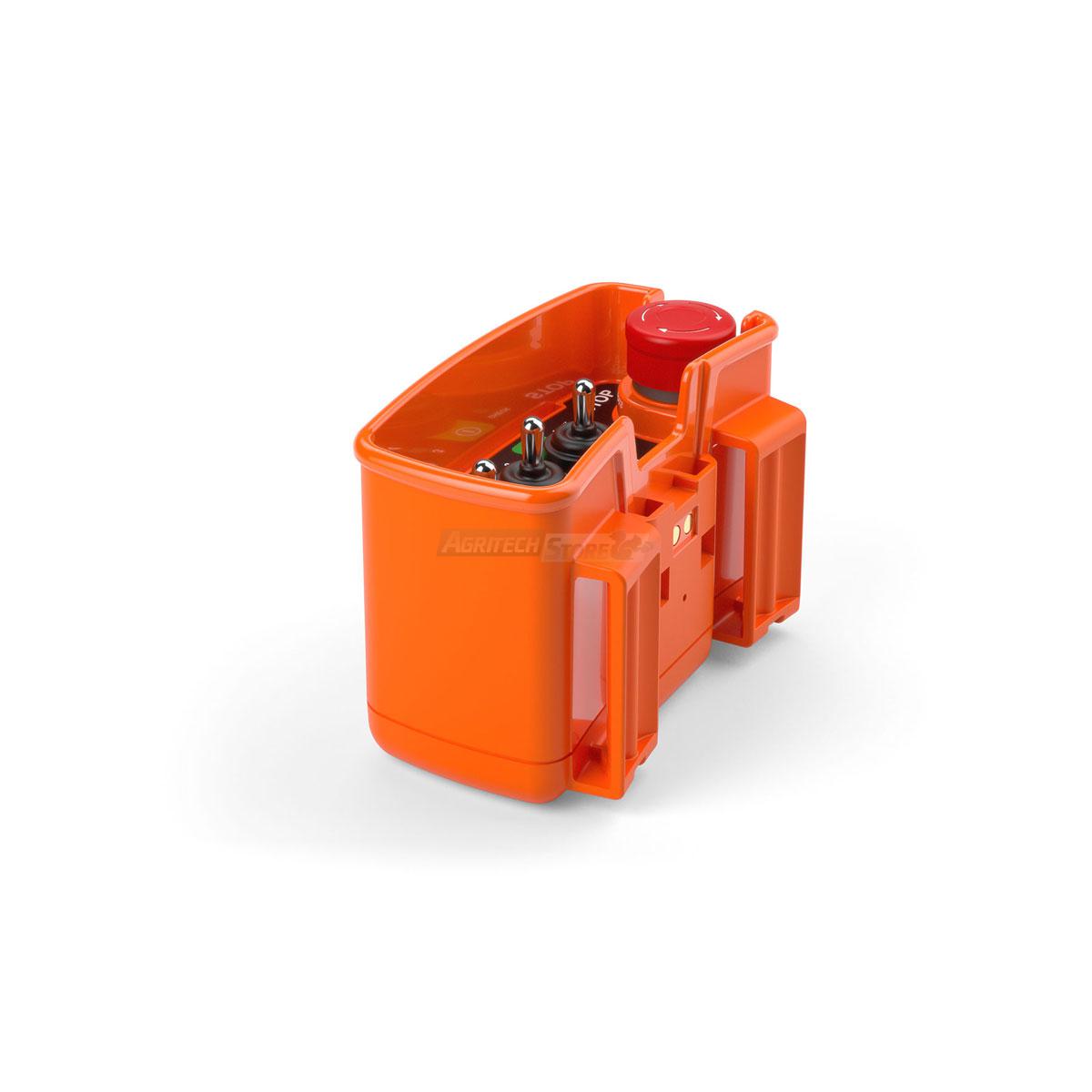

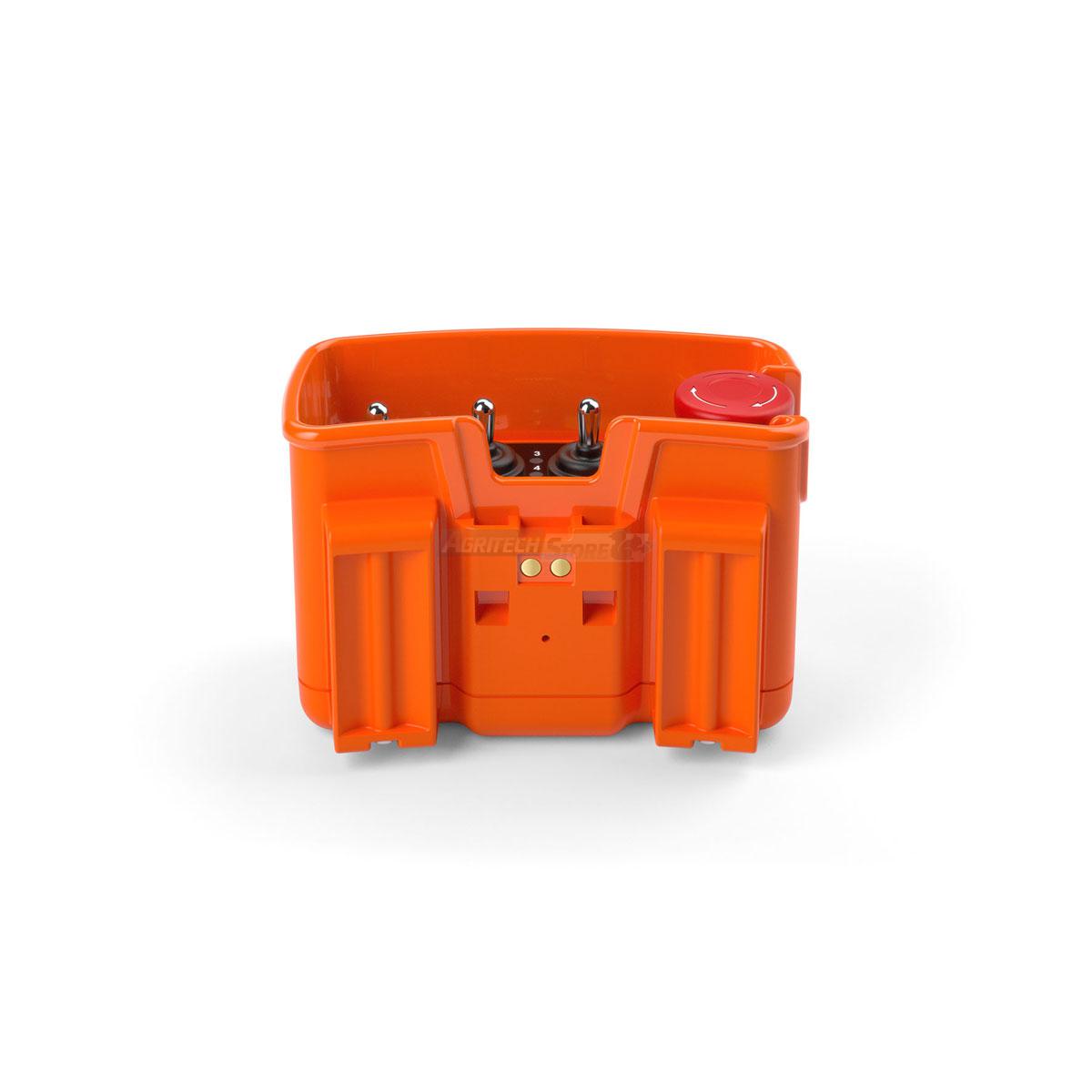

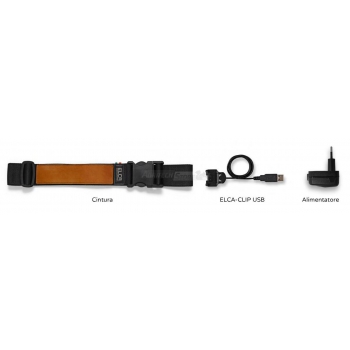

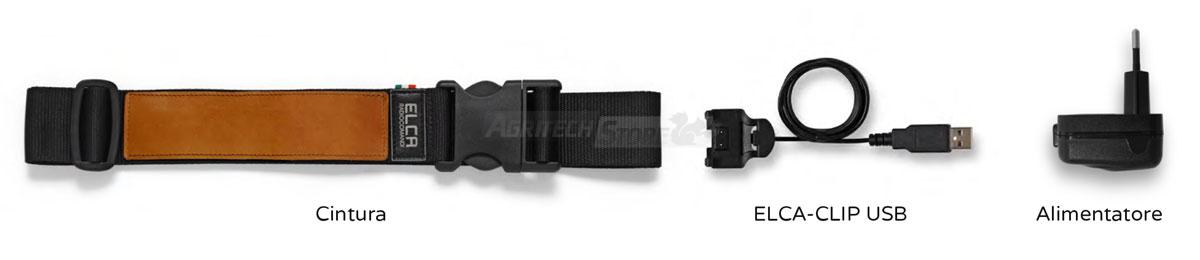

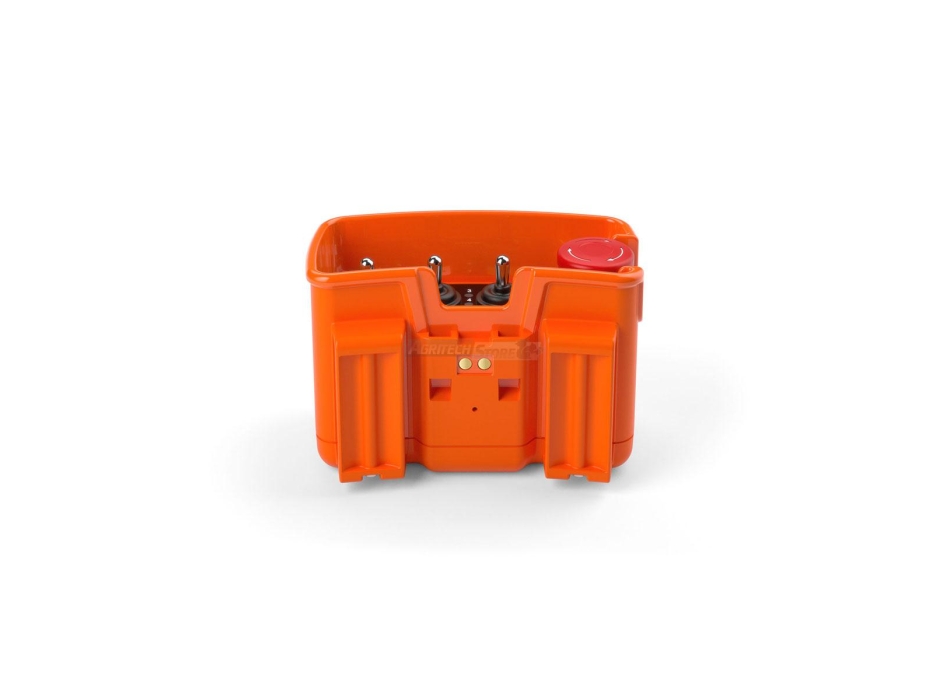

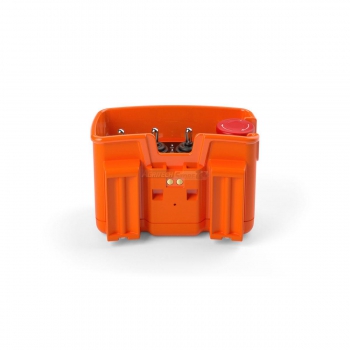

The belt supplied with the transmitter, with quick release, is finished in leather to keep intact the portability and comfort characteristics of this radio remote control for professional forestry winches. The integrated belt-guides protect the charging socket, which can also be used with a power-bank. The charging system is fast with the USB power supply and the dedicated ELCA-CLIP cable.
The available functions are:
- take place (considered after 4sec. *)
- wrap
- gas +/-
- start and stop engine
- horn
- 3 toggle selectors + emergency stop.
* The unwind function remains impulsive if activated in small pulses, and in any case less than 4 sec.
After 4 continuous seconds the lever can be released, and the function keeps going, until it is repeated, or the winding or stop function is activated
Application:
Agriculture, forestry winch, concrete mixer

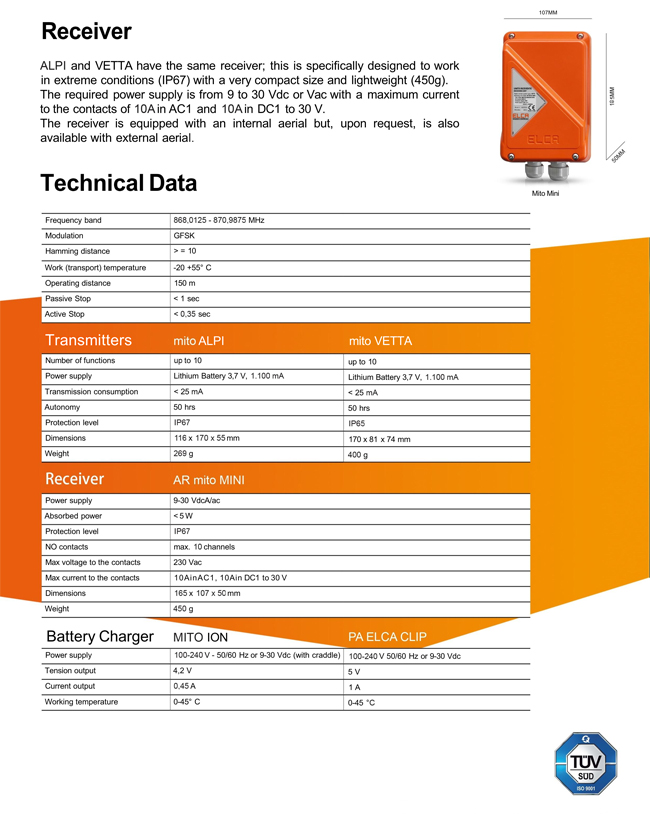

| TECHNICAL DATA: |
| Supply voltage: |
9-30 Vac / dc |
| Maximum voltage applicable to contacts: |
230Vac |
| Degree of protection AT / AR: |
IP67 |
| AT Transmitter Size: |
170x116x55 mm |
| AR Receiver Size: |
165x107x50 mm |
| Radio weight of the AT Pouch: |
- |
| Working temperature: |
-20 / + 55 ° C |
| Range of action: |
150m |
| ISM band work frequency: |
868,0125-869,9875MHz |
| Autonomy with battery charged at 20 ° C: |
About 50 hours |
